As a SKF bearing distributor, Nodes bearings have SKF thrust bearings in stock, including single direction, double direction SKF thrust ball bearings and bearings with sphered housing washer.
The separable components of SKF thrust ball bearings are interchangeable. This facilitates mounting and dismounting, as well as maintenance inspections.
Thrust bearings SKF with sphered housing washer can accommodate initial misalignment.
Thrust bearings SKF are designed to accommodate axial loads only and must not be subjected to any radial load.

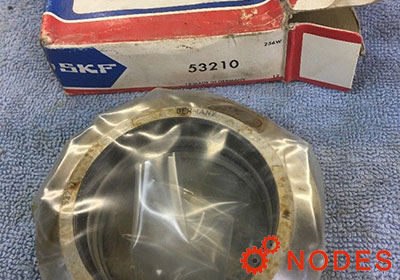

SKF 53210+U210 bearings
Nodes have SKF 53210+U210 bearings in stock, thrust ball bearings, Dimensions: 50mm x 78mm x 23.5mm, Limiting Speeds:4500 r/min.
- Brand: SKF
- Inside Diameter: 50 mm
- Outside Diameter: 78 mm
- Width: 23.5 mm
- Basic dynamic load rating: 49.4 kN
- Basic static load rating: 49.4 kN

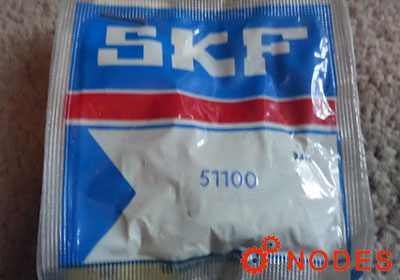

SKF 51100 thrust bearings
Nodes have SKF 51100 bearings in stock, thrust ball bearings, Dimensions: 10mm x 24mm x 9mm, Limiting Speeds:13000 r/min.
- Brand: SKF
- Inside Diameter: 10 mm
- Outside Diameter: 24 mm
- Width: 9 mm
- Basic dynamic load rating: 9.95 kN
- Basic static load rating: 9.95 kN

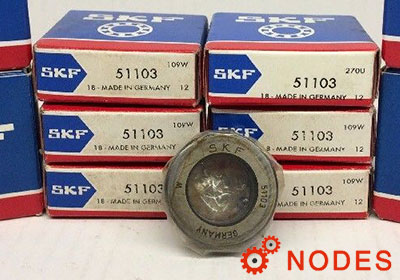

SKF 51103 thrust bearings
Nodes have SKF 51103 bearings in stock, thrust ball bearings, Dimensions: 17mm x 30mm x 9mm, Limiting Speeds:12000 r/min.
- Brand: SKF
- Inside Diameter: 17 mm
- Outside Diameter: 30 mm
- Width: 9 mm
- Basic dynamic load rating: 11.4 kN
- Basic static load rating: 11.4 kN
SKF 51104 thrust bearings
Nodes have SKF 51104 bearings in stock, thrust ball bearings, Dimensions: 20mm x 35mm x 10mm, Limiting Speeds:10000 r/min.
- Brand: SKF
- Inside Diameter: 20 mm
- Outside Diameter: 35 mm
- Width: 10 mm
- Basic dynamic load rating: 15.1 kN
- Basic static load rating: 15.1 kN

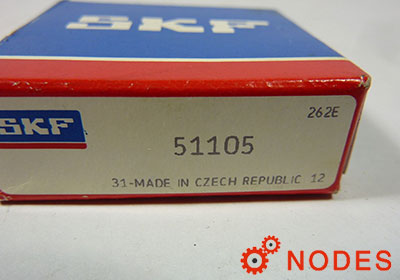

SKF 51105 thrust bearings
Nodes have SKF 51105 bearings in stock, thrust ball bearings, Dimensions: 25mm x 42mm x 11mm, Limiting Speeds:9000 r/min.
- Brand: SKF
- Inside Diameter: 25 mm
- Outside Diameter: 42 mm
- Width: 11 mm
- Basic dynamic load rating: 18.2 kN
- Basic static load rating: 18.2 kN
SKF 51106 thrust bearings
Nodes have SKF 51106 bearings in stock, thrust ball bearings, Dimensions: 30mm x 47mm x 11mm, Limiting Speeds:8500 r/min.
- Brand: SKF
- Inside Diameter: 30 mm
- Outside Diameter: 47 mm
- Width: 11 mm
- Basic dynamic load rating: 19 kN
- Basic static load rating: 19 kN

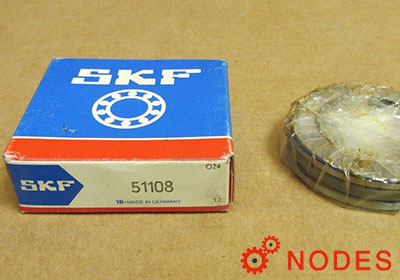

SKF 51108 thrust bearings
Nodes have SKF 51108 bearings in stock, thrust ball bearings, Dimensions: 40mm x 60mm x 13mm, Limiting Speeds:7000 r/min.
- Brand: SKF
- Inside Diameter: 40 mm
- Outside Diameter: 60 mm
- Width: 13 mm
- Basic dynamic load rating: 25.5 kN
- Basic static load rating: 25.5 kN

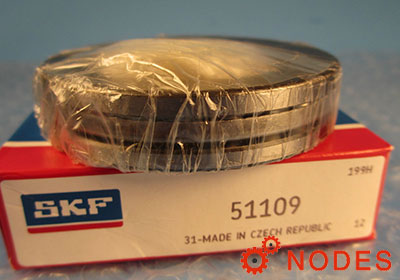

SKF 51109 thrust bearings
Nodes have SKF 51109 bearings in stock, thrust ball bearings, Dimensions: 45mm x 65mm x 14mm, Limiting Speeds:6300 r/min.
- Brand: SKF
- Inside Diameter: 45 mm
- Outside Diameter: 65 mm
- Width: 14 mm
- Basic dynamic load rating: 26.5 kN
- Basic static load rating: 26.5 kN
SKF 51110 thrust bearings
Nodes have SKF 51110 bearings in stock, thrust ball bearings, Dimensions: 50mm x 70mm x 14mm, Limiting Speeds:6300 r/min.
- Brand: SKF
- Inside Diameter: 50 mm
- Outside Diameter: 70 mm
- Width: 14 mm
- Basic dynamic load rating: 27 kN
- Basic static load rating: 27 kN

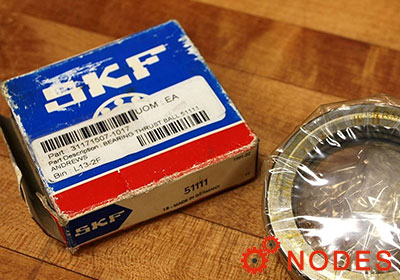

SKF 51111 thrust bearings
Nodes have SKF 51111 bearings in stock, thrust ball bearings, Dimensions: 55mm x 78mm x 16mm, Limiting Speeds:5300 r/min.
- Brand: SKF
- Inside Diameter: 55 mm
- Outside Diameter: 78 mm
- Width: 16 mm
- Basic dynamic load rating: 30.2 kN
- Basic static load rating: 30.2 kN

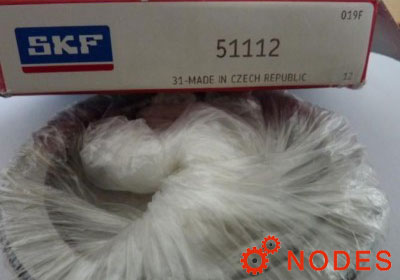

SKF 51112 thrust bearings
Nodes have SKF 51112 bearings in stock, thrust ball bearings, Dimensions: 60mm x 85mm x 17mm, Limiting Speeds:5000 r/min.
- Brand: SKF
- Inside Diameter: 60 mm
- Outside Diameter: 85 mm
- Width: 17 mm
- Basic dynamic load rating: 41.6 kN
- Basic static load rating: 41.6 kN
SKF 51113 thrust bearings
Nodes have SKF 51113 bearings in stock, thrust ball bearings, Dimensions: 65mm x 90mm x 18mm, Limiting Speeds:4800 r/min.
- Brand: SKF
- Inside Diameter: 65 mm
- Outside Diameter: 90 mm
- Width: 18 mm
- Basic dynamic load rating: 37.7 kN
- Basic static load rating: 37.7 kN

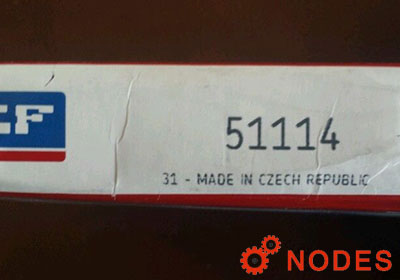

SKF 51114 thrust bearings
Nodes have SKF 51114 bearings in stock, thrust ball bearings, Dimensions: 70mm x 95mm x 18mm, Limiting Speeds:4500 r/min.
- Brand: SKF
- Inside Diameter: 70 mm
- Outside Diameter: 95 mm
- Width: 18 mm
- Basic dynamic load rating: 40.3 kN
- Basic static load rating: 40.3 kN

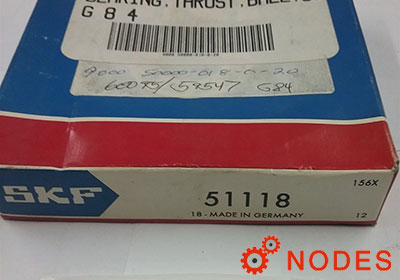

SKF 51118 thrust bearings
Nodes have SKF 51118 bearings in stock, thrust ball bearings, Dimensions: 90mm x 120mm x 22mm, Limiting Speeds:3800 r/min.
- Brand: SKF
- Inside Diameter: 90 mm
- Outside Diameter: 120 mm
- Width: 22 mm
- Basic dynamic load rating: 59.2 kN
- Basic static load rating: 59.2 kN

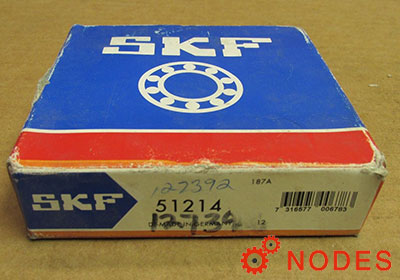

SKF 51214 thrust bearings
Nodes have SKF 51214 bearings in stock, thrust ball bearings, Dimensions: 70mm x 105mm x 27mm, Limiting Speeds:3600 r/min.
- Brand: SKF
- Inside Diameter: 70 mm
- Outside Diameter: 105 mm
- Width: 27 mm
- Basic dynamic load rating: 62.4 kN
- Basic static load rating: 62.4 kN
SKF 51215 thrust bearings
Nodes have SKF 51215 bearings in stock, thrust ball bearings, Dimensions: 75mm x 110mm x 27mm, Limiting Speeds:3400 r/min.
- Brand: SKF
- Inside Diameter: 75 mm
- Outside Diameter: 110 mm
- Width: 27 mm
- Basic dynamic load rating: 63.7 kN
- Basic static load rating: 63.7 kN

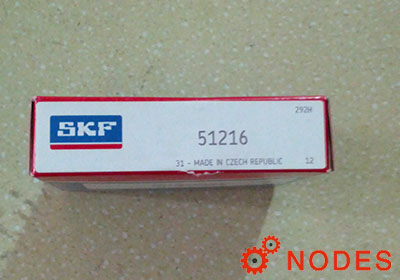

SKF 51216 thrust bearings
Nodes have SKF 51216 bearings in stock, thrust ball bearings, Dimensions: 80mm x 115mm x 28mm, Limiting Speeds:3400 r/min.
- Brand: SKF
- Inside Diameter: 80 mm
- Outside Diameter: 115 mm
- Width: 28 mm
- Basic dynamic load rating: 76.1 kN
- Basic static load rating: 76.1 kN

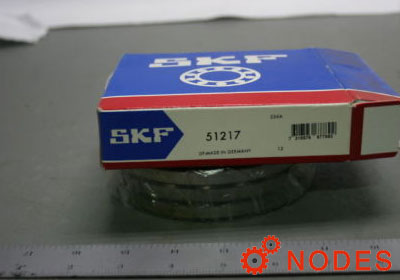

SKF 51217 thrust bearings
Nodes have SKF 51217 bearings in stock, thrust ball bearings, Dimensions: 85mm x 125mm x 31mm, Limiting Speeds:3000 r/min.
- Brand: SKF
- Inside Diameter: 85 mm
- Outside Diameter: 125 mm
- Width: 31 mm
- Basic dynamic load rating: 97.5 kN
- Basic static load rating: 97.5 kN

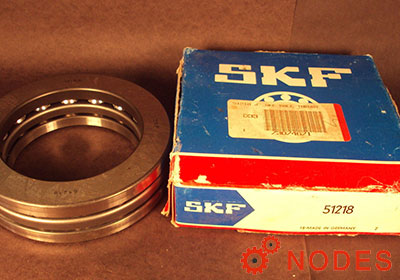

SKF 51218 thrust bearings
Nodes have SKF 51218 bearings in stock, thrust ball bearings, Dimensions: 90mm x 135mm x 35mm, Limiting Speeds:2800 r/min.
- Brand: SKF
- Inside Diameter: 90 mm
- Outside Diameter: 135 mm
- Width: 35 mm
- Basic dynamic load rating: 112 kN
- Basic static load rating: 112 kN

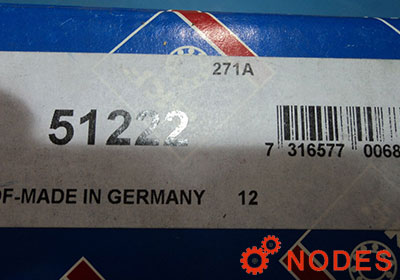

SKF 51222 thrust bearings
Nodes have SKF 51222 bearings in stock, thrust ball bearings, Dimensions: 110mm x 160mm x 38mm, Limiting Speeds:2400 r/min.
- Brand: SKF
- Inside Diameter: 110 mm
- Outside Diameter: 160 mm
- Width: 38 mm
- Basic dynamic load rating: 125 kN
- Basic static load rating: 125 kN
SKF 51240M thrust bearings
Nodes have SKF 51240M bearings in stock, thrust ball bearings, Dimensions: 200mm x 280mm x 62mm, Limiting Speeds:1500 r/min.
- Brand: SKF
- Inside Diameter: 200 mm
- Outside Diameter: 280 mm
- Width: 62 mm
- Basic dynamic load rating: 338 kN
- Basic static load rating: 338 kN

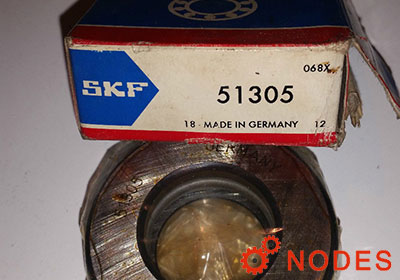

SKF 51305 thrust bearings
Nodes have SKF 51305 bearings in stock, thrust ball bearings, Dimensions: 25mm x 52mm x 18mm, Limiting Speeds:6300 r/min.
- Brand: SKF
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 18 mm
- Basic dynamic load rating: 34.5 kN
- Basic static load rating: 34.5 kN

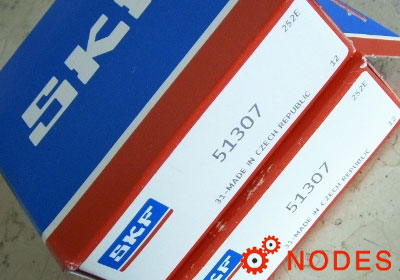

SKF 51307 thrust bearings
Nodes have SKF 51307 bearings in stock, thrust ball bearings, Dimensions: 35mm x 68mm x 24mm, Limiting Speeds:4800 r/min.
- Brand: SKF
- Inside Diameter: 35 mm
- Outside Diameter: 68 mm
- Width: 24 mm
- Basic dynamic load rating: 49.4 kN
- Basic static load rating: 49.4 kN

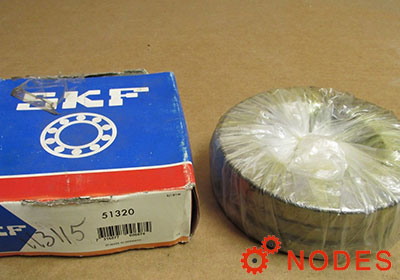

SKF 51320 thrust bearings
Nodes have SKF 51320 bearings in stock, thrust ball bearings, Dimensions: 100mm x 170mm x 55mm, Limiting Speeds:1900 r/min.
- Brand: SKF
- Inside Diameter: 100 mm
- Outside Diameter: 170 mm
- Width: 55 mm
- Basic dynamic load rating: 225 kN
- Basic static load rating: 225 kN

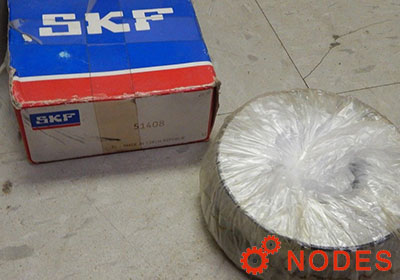

SKF 51408 thrust bearings
Nodes have SKF 51408 bearings in stock, thrust ball bearings, Dimensions: 40mm x 90mm x 36mm, Limiting Speeds:3400 r/min.
- Brand: SKF
- Inside Diameter: 40 mm
- Outside Diameter: 90 mm
- Width: 36 mm
- Basic dynamic load rating: 95.6 kN
- Basic static load rating: 95.6 kN
SKF 52207 thrust bearings
Nodes have SKF 52207 bearings in stock, double direction thrust ball bearings, Dimensions: 30mm x 62mm x 34mm, Limiting Speeds:4300 r/min.
- Brand: SKF
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 34 mm
- Basic dynamic load rating: 35.1 kN
- Basic static load rating: 35.1 kN

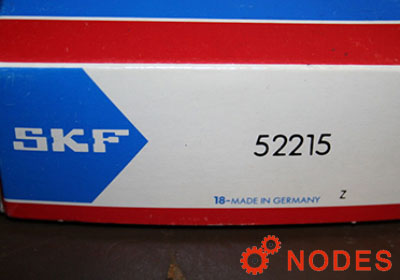

SKF 52215 thrust bearings
Nodes have SKF 52215 bearings in stock, double direction thrust ball bearings, Dimensions: 60mm x 110mm x 47mm, Limiting Speeds:2600 r/min.
- Brand: SKF
- Inside Diameter: 60 mm
- Outside Diameter: 110 mm
- Width: 47 mm
- Basic dynamic load rating: 63.7 kN
- Basic static load rating: 63.7 kN

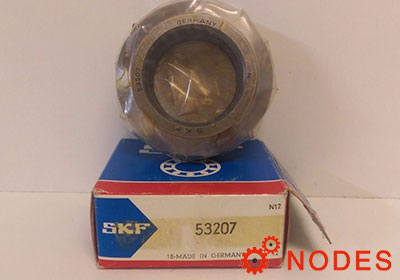

SKF 53207+U207 bearings
Nodes have SKF 53207+U207 bearings in stock, thrust ball bearings, Dimensions: 35mm x 62mm x 19.9mm, Limiting Speeds:5600 r/min.
- Brand: SKF
- Inside Diameter: 35 mm
- Outside Diameter: 62 mm
- Width: 19.9 mm
- Basic dynamic load rating: 35.1 kN
- Basic static load rating: 35.1 kN
