Nodes bearings have a wide range of self aligning ball bearings in stock. They are:
Brand: SKF, FAG, NSK, NTN, DEBOT
Open: 10, 12, 13, 22, 23, 12K, 13K, 22K, 23K series
Sealed: 22-2RS, 23-2RS, 22K-2RS
With extended inner ring: 112 series
Large self-aligning ball bearings: 130 and 139 series.
Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring.
SKF 1210EKTN9 ball bearings
SKF 1210EKTN9 bearing, Brand:SKF, SKF self-aligning ball bearings, Tapered bore, taper 1:12, Dimensions: 50mm x 90mm x 20mm, Limiting Speeds:10000 r/min, Nodes bearing have SKF 1210EKTN9 bearings in stock.
- Brand: SKF
- Dimension: 50mm x 90mm x 20mm
- Basic dynamic load rating: 26.5 kN
- Basic static load rating: 26.5 kN
SKF 1211EKTN9 ball bearings
SKF 1211EKTN9 bearing, Brand:SKF, SKF self-aligning ball bearings, Tapered bore, taper 1:12, Dimensions: 55mm x 100mm x 21mm, Limiting Speeds:9000 r/min, Nodes bearing have SKF 1211EKTN9 bearings in stock.
- Brand: SKF
- Dimension: 55mm x 100mm x 21mm
- Basic dynamic load rating: 27.6 kN
- Basic static load rating: 27.6 kN

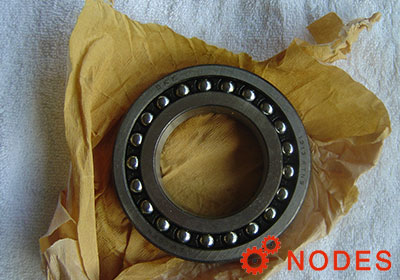

SKF 1213EKTN9 ball bearings
SKF 1213EKTN9 bearing, Brand:SKF, SKF self-aligning ball bearings, Tapered bore, taper 1:12, Dimensions: 65mm x 120mm x 23mm, Limiting Speeds:7000 r/min, Nodes bearing have SKF 1213EKTN9 bearings in stock.
- Brand: SKF
- Dimension: 65mm x 120mm x 23mm
- Basic dynamic load rating: 35.1 kN
- Basic static load rating: 35.1 kN
SKF 1307EKTN9 ball bearings
SKF 1307EKTN9 bearing, Brand:SKF, SKF self-aligning ball bearings, Tapered bore, taper 1:12, Dimensions: 35mm x 80mm x 21mm, Limiting Speeds:11000 r/min, Nodes bearing have SKF 1307EKTN9 bearings in stock.
- Brand: SKF
- Dimension: 35mm x 80mm x 21mm
- Basic dynamic load rating: 26.5 kN
- Basic static load rating: 26.5 kN
SKF 1309EKTN9 ball bearings
SKF 1309EKTN9 bearing, Brand:SKF, SKF self-aligning ball bearings, Tapered bore, taper 1:12, Dimensions: 45mm x 100mm x 25mm, Limiting Speeds:8500 r/min, Nodes bearing have SKF 1309EKTN9 bearings in stock.
- Brand: SKF
- Dimension: 45mm x 100mm x 25mm
- Basic dynamic load rating: 39 kN
- Basic static load rating: 39 kN
SKF 1311EKTN9 ball bearings
SKF 1311EKTN9 bearing, Brand:SKF, SKF self-aligning ball bearings, Tapered bore, taper 1:12, Dimensions: 55mm x 120mm x 29mm, Limiting Speeds:7500 r/min, Nodes bearing have SKF 1311EKTN9 bearings in stock.
- Brand: SKF
- Dimension: 55mm x 120mm x 29mm
- Basic dynamic load rating: 50.7 kN
- Basic static load rating: 50.7 kN
SKF 1312EKTN9 ball bearings
SKF 1312EKTN9 bearing, Brand:SKF, SKF self-aligning ball bearings, Tapered bore, taper 1:12, Dimensions: 60mm x 130mm x 31mm, Limiting Speeds:6300 r/min, Nodes bearing have SKF 1312EKTN9 bearings in stock.
- Brand: SKF
- Dimension: 60mm x 130mm x 31mm
- Basic dynamic load rating: 58.5 kN
- Basic static load rating: 58.5 kN
SKF 2209EKTN9 ball bearings
SKF 2209EKTN9 bearing, Brand:SKF, SKF self-aligning ball bearings, Tapered bore, taper 1:12, Dimensions: 45mm x 85mm x 23mm, Limiting Speeds:10000 r/min, Nodes bearing have SKF 2209EKTN9 bearings in stock.
- Brand: SKF
- Dimension: 45mm x 85mm x 23mm
- Basic dynamic load rating: 32.5 kN
- Basic static load rating: 32.5 kN
SKF 1215K ball bearings
SKF 1215K bearing, Brand:SKF, SKF self-aligning ball bearings, Tapered bore, taper 1:12, Dimensions: 75mm x 130mm x 25mm, Limiting Speeds:6700 r/min, Nodes bearing have SKF 1215K bearings in stock.
- Brand: SKF
- Dimension: 75mm x 130mm x 25mm
- Basic dynamic load rating: 39 kN
- Basic static load rating: 39 kN
SKF 2212EKTN9 ball bearings
SKF 2212EKTN9 bearing, Brand:SKF, SKF self-aligning ball bearings, Tapered bore, taper 1:12, Dimensions: 60mm x 110mm x 28mm, Limiting Speeds:8000 r/min, Nodes bearing have SKF 2212EKTN9 bearings in stock.
- Brand: SKF
- Dimension: 60mm x 110mm x 28mm
- Basic dynamic load rating: 48.8 kN
- Basic static load rating: 48.8 kN
FAG 1303-TVH bearings
Nodes bearings have FAG 1303-TVH bearings in stock, self aligning ball bearings, 1303-TVH bearings dimensions: 17mm x 47mm x 14mm, Cr: 12900N, C0r: 3150N.
- Brand: FAG
- Dimension: 17mm x 47mm x 14mm
- Basic dynamic load rating: 12.9 kN
- Basic static load rating: 12.9 kN
FAG 1301-TVH bearings
Nodes bearings have FAG 1301-TVH bearings in stock, self aligning ball bearings, 1301-TVH bearings dimensions: 12mm x 37mm x 12mm, Cr: 9800N, C0r: 2140N.
- Brand: FAG
- Dimension: 12mm x 37mm x 12mm
- Basic dynamic load rating: 9.8 kN
- Basic static load rating: 9.8 kN
FAG 1230-M bearings
Nodes bearings have FAG 1230-M bearings in stock, self aligning ball bearings, 1230-M bearings dimensions: 150mm x 270mm x 54mm, Cr: 180000N, C0r: 86000N.
- Brand: FAG
- Dimension: 150mm x 270mm x 54mm
- Basic dynamic load rating: 180 kN
- Basic static load rating: 180 kN
FAG 1228-M bearings
Nodes bearings have FAG 1228-M bearings in stock, self aligning ball bearings, 1228-M bearings dimensions: 140mm x 250mm x 50mm, Cr: 163000N, C0r: 74000N.
- Brand: FAG
- Dimension: 140mm x 250mm x 50mm
- Basic dynamic load rating: 163 kN
- Basic static load rating: 163 kN
FAG 1224-M bearings
Nodes bearings have FAG 1224-M bearings in stock, self aligning ball bearings, 1224-M bearings dimensions: 120mm x 215mm x 42mm, Cr: 121000N, C0r: 52000N.
- Brand: FAG
- Dimension: 120mm x 215mm x 42mm
- Basic dynamic load rating: 121 kN
- Basic static load rating: 121 kN
FAG 1221-M bearings
Nodes bearings have FAG 1221-M bearings in stock, self aligning ball bearings, 1221-M bearings dimensions: 105mm x 190mm x 36mm, Cr: 75000N, C0r: 32000N.
- Brand: FAG
- Dimension: 105mm x 190mm x 36mm
- Basic dynamic load rating: 75 kN
- Basic static load rating: 75 kN
FAG 1219-M bearings
Nodes bearings have FAG 1219-M bearings in stock, self aligning ball bearings, 1219-M bearings dimensions: 95mm x 170mm x 32mm, Cr: 64000N, C0r: 27000N.
- Brand: FAG
- Dimension: 95mm x 170mm x 32mm
- Basic dynamic load rating: 64 kN
- Basic static load rating: 64 kN
FAG 1313-TVH bearings
Nodes bearings have FAG 1313-TVH bearings in stock, self aligning ball bearings, 1313-TVH bearings dimensions: 65mm x 140mm x 33mm, Cr: 63000N, C0r: 22700N.
- Brand: FAG
- Dimension: 65mm x 140mm x 33mm
- Basic dynamic load rating: 63 kN
- Basic static load rating: 63 kN
FAG 1315-M bearings
Nodes bearings have FAG 1315-M bearings in stock, self aligning ball bearings, 1315-M bearings dimensions: 75mm x 160mm x 37mm, Cr: 80000N, C0r: 29500N.
- Brand: FAG
- Dimension: 75mm x 160mm x 37mm
- Basic dynamic load rating: 80 kN
- Basic static load rating: 80 kN
FAG 1320-M bearings
Nodes bearings have FAG 1320-M bearings in stock, self aligning ball bearings, 1320-M bearings dimensions: 100mm x 215mm x 47mm, Cr: 145000N, C0r: 57000N.
- Brand: FAG
- Dimension: 100mm x 215mm x 47mm
- Basic dynamic load rating: 145 kN
- Basic static load rating: 145 kN
FAG 1322-M bearings
Nodes bearings have FAG 1322-M bearings in stock, self aligning ball bearings, 1322-M bearings dimensions: 110mm x 240mm x 50mm, Cr: 165000N, C0r: 71000N.
- Brand: FAG
- Dimension: 110mm x 240mm x 50mm
- Basic dynamic load rating: 165 kN
- Basic static load rating: 165 kN
FAG 2200-TVH bearings
Nodes bearings have FAG 2200-TVH bearings in stock, self aligning ball bearings, 2200-TVH bearings dimensions: 10mm x 30mm x 14mm, Cr: 8800N, C0r: 1730N.
- Brand: FAG
- Dimension: 10mm x 30mm x 14mm
- Basic dynamic load rating: 8.8 kN
- Basic static load rating: 8.8 kN
FAG 2203-TVH bearings
Nodes bearings have FAG 2203-TVH bearings in stock, self aligning ball bearings, 2203-TVH bearings dimensions: 17mm x 40mm x 16mm, Cr: 11800N, C0r: 2750N.
- Brand: FAG
- Dimension: 17mm x 40mm x 16mm
- Basic dynamic load rating: 11.8 kN
- Basic static load rating: 11.8 kN
FAG 2204-TVH bearings
Nodes bearings have FAG 2204-TVH bearings in stock, self aligning ball bearings, 2204-TVH bearings dimensions: 20mm x 47mm x 18mm, Cr: 14700N, C0r: 3500N.
- Brand: FAG
- Dimension: 20mm x 47mm x 18mm
- Basic dynamic load rating: 14.7 kN
- Basic static load rating: 14.7 kN
FAG 2205-TVH bearings
Nodes bearings have FAG 2205-TVH bearings in stock, self aligning ball bearings, 2205-TVH bearings dimensions: 25mm x 52mm x 18mm, Cr: 17300N, C0r: 4400N.
- Brand: FAG
- Dimension: 25mm x 52mm x 18mm
- Basic dynamic load rating: 17.3 kN
- Basic static load rating: 17.3 kN
FAG 2210-TVH bearings
Nodes bearings have FAG 2210-TVH bearings in stock, self aligning ball bearings, 2210-TVH bearings dimensions: 50mm x 90mm x 23mm, Cr: 28500N, C0r: 9400N.
- Brand: FAG
- Dimension: 50mm x 90mm x 23mm
- Basic dynamic load rating: 28.5 kN
- Basic static load rating: 28.5 kN
FAG 2211-TVH bearings
Nodes bearings have FAG 2211-TVH bearings in stock, self aligning ball bearings, 2211-TVH bearings dimensions: 55mm x 100mm x 25mm, Cr: 39000N, C0r: 12400N.
- Brand: FAG
- Dimension: 55mm x 100mm x 25mm
- Basic dynamic load rating: 39 kN
- Basic static load rating: 39 kN
FAG 2212-TVH bearings
Nodes bearings have FAG 2212-TVH bearings in stock, self aligning ball bearings, 2212-TVH bearings dimensions: 60mm x 110mm x 28mm, Cr: 48000N, C0r: 16300N.
- Brand: FAG
- Dimension: 60mm x 110mm x 28mm
- Basic dynamic load rating: 48 kN
- Basic static load rating: 48 kN
FAG 2213-TVH bearings
Nodes bearings have FAG 2213-TVH bearings in stock, self aligning ball bearings, 2213-TVH bearings dimensions: 65mm x 120mm x 31mm, Cr: 58000N, C0r: 19000N.
- Brand: FAG
- Dimension: 65mm x 120mm x 31mm
- Basic dynamic load rating: 58 kN
- Basic static load rating: 58 kN
FAG 2219-M bearings
Nodes bearings have FAG 2219-M bearings in stock, self aligning ball bearings, 2219-M bearings dimensions: 95mm x 170mm x 43mm, Cr: 84000N, C0r: 34000N.
- Brand: FAG
- Dimension: 95mm x 170mm x 43mm
- Basic dynamic load rating: 84 kN
- Basic static load rating: 84 kN
FAG 2220-M bearings
Nodes bearings have FAG 2220-M bearings in stock, self aligning ball bearings, 2220-M bearings dimensions: 100mm x 180mm x 46mm, Cr: 98000N, C0r: 40000N.
- Brand: FAG
- Dimension: 100mm x 180mm x 46mm
- Basic dynamic load rating: 98 kN
- Basic static load rating: 98 kN
FAG 2222-M bearings
Nodes bearings have FAG 2222-M bearings in stock, self aligning ball bearings, 2222-M bearings dimensions: 110mm x 200mm x 53mm, Cr: 126000N, C0r: 51000N.
- Brand: FAG
- Dimension: 110mm x 200mm x 53mm
- Basic dynamic load rating: 126 kN
- Basic static load rating: 126 kN
FAG 2303-TVH bearings
Nodes bearings have FAG 2303-TVH bearings in stock, self aligning ball bearings, 2303-TVH bearings dimensions: 17mm x 47mm x 19mm, Cr: 13900N, C0r: 3150N.
- Brand: FAG
- Dimension: 17mm x 47mm x 19mm
- Basic dynamic load rating: 13.9 kN
- Basic static load rating: 13.9 kN
FAG 2309-TVH bearings
Nodes bearings have FAG 2309-TVH bearings in stock, self aligning ball bearings, 2309-TVH bearings dimensions: 45mm x 100mm x 36mm, Cr: 55000N, C0r: 16500N.
- Brand: FAG
- Dimension: 45mm x 100mm x 36mm
- Basic dynamic load rating: 55 kN
- Basic static load rating: 55 kN
FAG 2313-TVH bearings
Nodes bearings have FAG 2313-TVH bearings in stock, self aligning ball bearings, 2313-TVH bearings dimensions: 65mm x 140mm x 48mm, Cr: 98000N, C0r: 32000N.
- Brand: FAG
- Dimension: 65mm x 140mm x 48mm
- Basic dynamic load rating: 98 kN
- Basic static load rating: 98 kN
FAG 2314-M bearings
Nodes bearings have FAG 2314-M bearings in stock, self aligning ball bearings, 2314-M bearings dimensions: 70mm x 150mm x 51mm, Cr: 112000N, C0r: 37000N.
- Brand: FAG
- Dimension: 70mm x 150mm x 51mm
- Basic dynamic load rating: 112 kN
- Basic static load rating: 112 kN
FAG 2315-M bearings
Nodes bearings have FAG 2315-M bearings in stock, self aligning ball bearings, 2315-M bearings dimensions: 75mm x 160mm x 55mm, Cr: 125000N, C0r: 42000N.
- Brand: FAG
- Dimension: 75mm x 160mm x 55mm
- Basic dynamic load rating: 125 kN
- Basic static load rating: 125 kN
FAG 2317-M bearings
Nodes bearings have FAG 2317-M bearings in stock, self aligning ball bearings, 2317-M bearings dimensions: 85mm x 180mm x 60mm, Cr: 143000N, C0r: 51000N.
- Brand: FAG
- Dimension: 85mm x 180mm x 60mm
- Basic dynamic load rating: 143 kN
- Basic static load rating: 143 kN
