FAG 2212-2RS-TVH bearings
Also known as : 2212-2RS-TVH
- Inside Diameter: 60 mm
- Outside Diameter: 110 mm
- Width: 28 mm
- Basic dynamic load rating: 30.5 kN
- Basic static load rating: 11.4 kN
FAG 2212-2RS-TVH Bearing
FAG 2212-2RS-TVH Bearing details
| d | 60 mm | |
|---|---|---|
| D | 110 mm | |
| B | 28 mm | |
| D2 | 99,5 mm | |
| Da max | 101 mm | |
| d2 | 70,4 mm | |
| da min | 69 mm | |
| ra max | 1,5 mm | |
| rmin | 1,5 mm | |
| m | 1,13 kg | Mass |
| Cr | 30500 N | Basic dynamic load rating, radial |
| C0r | 11400 N | Basic static load rating, radial |
| e | 0,18 | |
| Y1 | 3,47 | |
| Y2 | 5,37 | |
| Y0 | 3,64 | |
| nG | 3450 1/min | Limiting speed |
| Cur | 710 N | Fatigue limit load, radial |
As FAG bearing distributor, Nodes bearings have FAG 2212-2RS-TVH self aligning ball bearings in stock, main dimensions to DIN 630, lip seals on both sides.
FAG 2212-2RS-TVH bearing cross reference

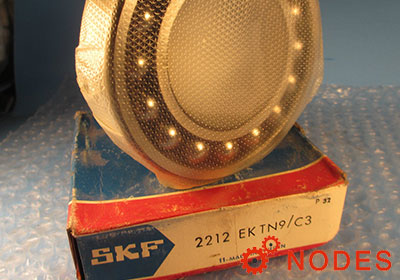

SKF 2212EKTN9 bearing
60mm x 110mm x 28mm
FAG 1212-TVH bearing
60mm x 110mm x 22mm
FAG 1312-TVH bearing
60mm x 130mm x 31mm
FAG 2212-TVH bearing
60mm x 110mm x 28mm
FAG 2312-TVH bearing
60mm x 130mm x 46mm
FAG 1212-K-TVH-C3 bearing
60mm x 110mm x 22mm
FAG 1312-K-TVH-C3 bearing
60mm x 130mm x 31mm
FAG 2212-K-TVH-C3 bearing
60mm x 110mm x 28mm
FAG 2312-K-TVH-C3 bearing
60mm x 130mm x 46mm
FAG 2212-K-2RS-TVH-C3 bearing
60mm x 110mm x 28mm
