FAG 30/6-B-2RSR-TVH bearings | Dimensions: 6x17x9mm
Also known as :
- Inside Diameter: 6 mm
- Outside Diameter: 17 mm
- Width: 9 mm
- Basic dynamic load rating: 3.05 kN
- Basic static load rating: 1.4 kN
FAG 30/6-B-2RSR-TVH Bearing

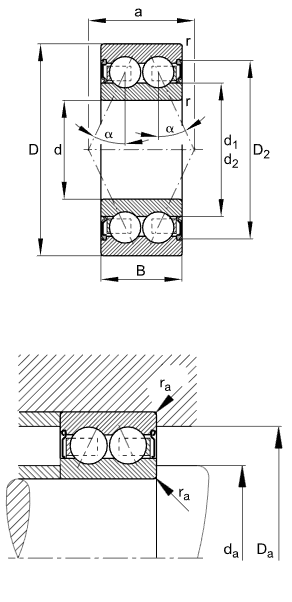

FAG 30/6-B-2RSR-TVH Bearing details
| Number | 30/6-B-2RSR-TVH | |
|---|---|---|
| Type |
Angular contact ball bearings double row, lip seals on both sides, contact angle α = 25° |
|
| d | 6mm | |
| D | 17mm | |
| B | 9mm | |
| a | 8,8mm | |
| D2 | 14,8mm | |
| Da max | 15mm | |
| d2 | 8,3mm | |
| da min | 8mm | |
| ra max | 0,3mm | |
| rmin | 0,3mm | |
| α | 25° | Contact angle |
| m | 0,011kg | Mass |
| Cr | 3050N | Basic dynamic load rating, radial |
| C0r | 1400N | Basic static load rating, radial |
| Cur | 72N | Fatigue limit load, radial |
| nG | 280001/min | Limiting speed |
Nodes bearings have FAG 30/6-B-2RSR-TVH bearings in stock, FAG bearings, double row, lip seals on both sides, contact angle α = 25°.
FAG 30/6-B-2RSR-TVH bearing cross reference

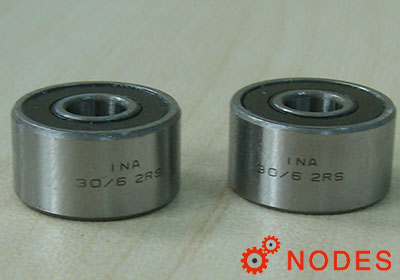

INA 30/6-2RS bearing
6mm x 17mm x 9mm
FAG 30/6-B-TVH bearing
6mm x 17mm x 9mm
