FAG 61844 bearings
Also known as : 6844
- Inside Diameter: 220 mm
- Outside Diameter: 270 mm
- Width: 24 mm
- Basic dynamic load rating: 78 kN
- Basic static load rating: 97 kN
FAG 61844 Bearing
FAG 61844 Bearing details
| d | 220 mm | |
|---|---|---|
| D | 270 mm | |
| B | 24 mm | |
| D1 | 255 mm | |
| Da max | 263 mm | |
| d1 | 235,9 mm | |
| da min | 227 mm | |
| ra max | 1,5 mm | |
| rmin | 1,5 mm | |
| m | 2,62 kg | Mass |
| Cr | 78000 N | Basic dynamic load rating, radial |
| C0r | 97000 N | Basic static load rating, radial |
| Cur | 3550 N | Fatigue limit load, radial |
| nG | 3200 1/min | Limiting speed |
| nB | 2320 1/min | Reference speed |
| f0 | 15,9 | Calculation factor |
As FAG bearing distributor, Nodes bearings have FAG 61844 deep groove ball bearings in stock, main dimensions to DIN 625-1.
FAG 61844 bearing cross reference

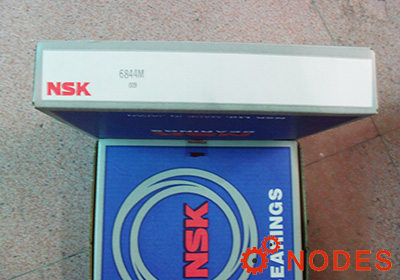

NSK 6844 bearing
220mm x 270mm x 24mm
FAG 16044 bearing
220mm x 340mm x 37mm
FAG 16044-M bearing
220mm x 340mm x 37mm
FAG 6044-M bearing
220mm x 340mm x 56mm
FAG 6044-M-J20AA bearing
220mm x 340mm x 56mm
FAG 61844-MA bearing
220mm x 270mm x 24mm
FAG 61944 bearing
220mm x 300mm x 38mm
FAG 61944-MA bearing
220mm x 300mm x 38mm
FAG 6244-M bearing
220mm x 400mm x 65mm
FAG 6344-M bearing
220mm x 460mm x 88mm
