FAG 7217-B-XL-MP Bearing

FAG 7217-B-XL-MP Angular contact ball bearings

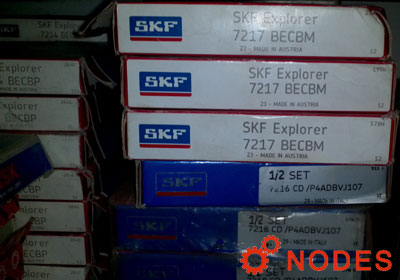

Also known as : 7217-B-XL-MP, 7217BECBM

• Inside Diameter: 85 mm
• Outside Diameter: 150 mm
• Width: 28 mm
• Basic dynamic load rating: 93 kN
• Basic static load rating: 81 kN

Inquire Now

FAG 7217-B-XL-MP Bearing

model	7217-B-XL-MP
d	85 mm
D	150 mm
B	28 mm
a	63 mm
D1	125 mm
Da max	139 mm
Db max	144.4 mm
d1	110.6 mm
da min	96 mm
r1 min	1 mm
ra max	2 mm
ra1 max	1 mm
rmin	2 mm
Contact angle	40°
Cr	93000 N
C0r	81000 N
Limiting speed	7000 1/min
Reference speed	4800 1/min
Cur	5000 N Fatigue limit load, radial
mass	2.09 kg

FAG 7217-B-XL-MP ball bearings, Angular contact ball bearing, contact angle α = 40°.
