FAG 7306-B-XL-2RS-TVP Bearing

FAG 7306-B-XL-2RS-TVP bearings | Dimensions: 30x72x19mm

Also known as : 7306-B-XL-2RS-TVP

  • Inside Diameter: 30 mm
  • Outside Diameter: 72 mm
  • Width: 19 mm
  • Basic dynamic load rating: 35.5 kN
  • Basic static load rating: 22.1 kN

Inquire Now


FAG 7306-B-XL-2RS-TVP Bearing

FAG 7306-B-XL-2RS-TVP Bearing details

Number 7306-B-XL-2RS-TVP
Type Angular contact ball bearings

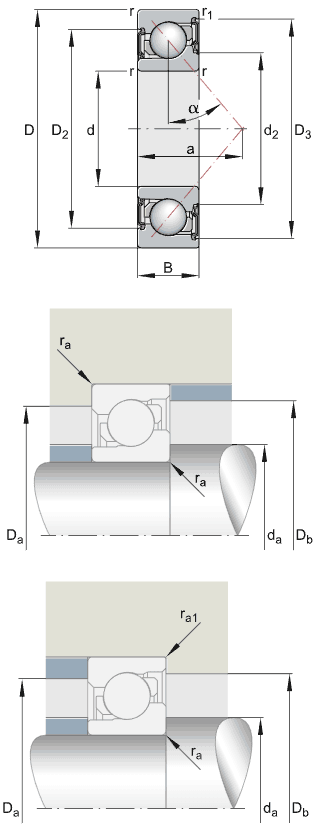

main dimensions to DIN 628-1, contact angle α = 40°, lip seals on both sides

d 30mm
D 72mm
B 19mm
a 31mm
D1 55,9mm
D2 58,5mm
D3 65,9mm
Da max 65mm
Db max 67,8mm
d2 42,7mm
da min 37mm
r1 min 0,6mm
ra max 1mm
ra1 max 0,6mm
rmin 1,1mm
α 40° Contact angle
m 0,341kg Mass
Cr 35500N Basic dynamic load rating, radial
C0r 22100N Basic static load rating, radial
Cur 1490N Fatigue limit load, radial
nG 60001/min Limiting speed

Nodes bearings have FAG 7306-B-XL-2RS-TVP bearings in stock, FAG bearings, main dimensions to DIN 628-1, contact angle α = 40°, lip seals on both sides.
