FAG 7316-B-XL-MP Angular contact ball bearings
Also known as : 7316B, 7316BEM
- Inside Diameter: 80 mm
- Outside Diameter: 170 mm
- Width: 39 mm
- Basic dynamic load rating: 155 kN
- Basic static load rating: 124 kN
FAG 7316-B-XL-MP Bearing
FAG 7316-B-XL-MP Bearing details
| model | 7316-B-XL-MP |
|---|---|
| d | 80 mm |
| D | 170 mm |
| B | 39 mm |
| a | 72 mm |
| D1 | 136.7 mm |
| Da max | 158 mm |
| Db max | 163 mm |
| d1 | 115.7 mm |
| da min | 92 mm |
| r1 min | 1.1 mm |
| ra max | 2.1 mm |
| ra1 max | 1 mm |
| rmin | 2.1 mm |
| Contact angle | 40° |
| Cr | 155000 N |
| C0r | 124000 N |
| Limiting speed | 6200 1/min |
| Reference speed | 4250 1/min |
| Cur | 7500 N Fatigue limit load, radial |
| mass | 4.17 kg |
FAG 7316-B-XL-MP ball bearings, Angular contact ball bearing, contact angle α = 40°.
FAG 7316-B-XL-MP bearing cross reference
FAG 71816-B-TVH bearing
80mm x 100mm x 10mm
FAG 7216-B-XL-JP bearing
80mm x 140mm x 26mm
FAG 7216-B-MP-UO bearing
80mm x 140mm x 26mm
FAG 7216-B-XL-TVP bearing
80mm x 140mm x 26mm
FAG 7316-B-XL-JP bearing
80mm x 170mm x 39mm
FAG 7316-B-XL-TVP bearing
80mm x 170mm x 39mm
FAG 7416-B-XL-MP bearing
80mm x 200mm x 48mm

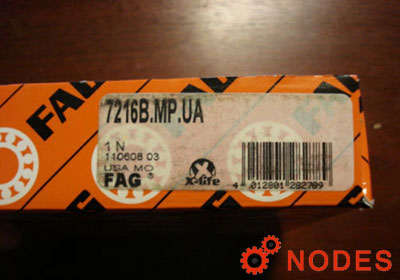

FAG 7216-B-MP-UA bearing
80mm x 140mm x 26mm

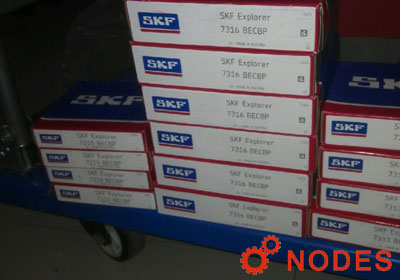

SKF 7316 BECBP bearing
