FAG ball bearings come in a wide variety of types, designs, series, sizes, variants and materials. As a FAG Bearing distributor, Nodes bearings have FAG deep groove ball bearing, angular contact ball bearing, self-aligning ball bearing, super precision ball bearing in our stock.
FAG bearings are the biggest selling brands in our company with a wide range of types. As FAG bearings distributor, we offer: On time deliveries, no minimums quantities, and combined sales experience of over 20 years in this field
FAG 7405-B-MP-UA Angular contact ball bearings
FAG 7405-B-MP-UA bearing, Angular contact ball bearing, Dimensions: 25mm x 80mm x 21mm, Cr: 43500N, C0r: 26000N, Limiting Speeds:15100 1/min.
- Brand: FAG
- Inside Diameter: 25 mm
- Outside Diameter: 80 mm
- Width: 21 mm
- Basic dynamic load rating: 43.5 kN
- Basic static load rating: 43.5 kN
FAG 7330-B-MP-UA Angular contact ball bearings
FAG 7330-B-MP-UA bearing, Angular contact ball bearing, Dimensions: 150mm x 320mm x 65mm, Cr: 340000N, C0r: 430000N, Limiting Speeds:3150 1/min.
- Brand: FAG
- Inside Diameter: 150 mm
- Outside Diameter: 320 mm
- Width: 65 mm
- Basic dynamic load rating: 340 kN
- Basic static load rating: 340 kN
FAG 7322-B-MP Angular contact ball bearings
FAG 7322-B-MP bearing, Angular contact ball bearing, Dimensions: 110mm x 240mm x 50mm, Cr: 250000N, C0r: 245000N, Limiting Speeds:4300 1/min.
- Brand: FAG
- Inside Diameter: 110 mm
- Outside Diameter: 240 mm
- Width: 50 mm
- Basic dynamic load rating: 250 kN
- Basic static load rating: 250 kN
FAG 7320-B-MP-UO Angular contact ball bearings
FAG 7320-B-MP-UO bearing, Angular contact ball bearing, Dimensions: 100mm x 215mm x 47mm, Cr: 214000N, C0r: 197000N, Limiting Speeds:4800 1/min.
- Brand: FAG
- Inside Diameter: 100 mm
- Outside Diameter: 215 mm
- Width: 47 mm
- Basic dynamic load rating: 214 kN
- Basic static load rating: 214 kN
FAG 7318-B-MP-UA Angular contact ball bearings
FAG 7318-B-MP-UA bearing, Angular contact ball bearing, Dimensions: 90mm x 190mm x 43mm, Cr: 180000N, C0r: 155000N, Limiting Speeds:5500 1/min.
- Brand: FAG
- Inside Diameter: 90 mm
- Outside Diameter: 190 mm
- Width: 43 mm
- Basic dynamic load rating: 180 kN
- Basic static load rating: 180 kN
FAG 7318-B-JP Angular contact ball bearings
FAG 7318-B-JP bearing, Angular contact ball bearing, Dimensions: 90mm x 190mm x 43mm, Cr: 180000N, C0r: 155000N, Limiting Speeds:4200 1/min.
- Brand: FAG
- Inside Diameter: 90 mm
- Outside Diameter: 190 mm
- Width: 43 mm
- Basic dynamic load rating: 180 kN
- Basic static load rating: 180 kN
FAG 7317-B-TVP Angular contact ball bearings
FAG 7317-B-TVP bearing, Angular contact ball bearing, Dimensions: 85mm x 180mm x 41mm, Cr: 167000N, C0r: 138000N, Limiting Speeds:4450 1/min.
- Brand: FAG
- Inside Diameter: 85 mm
- Outside Diameter: 180 mm
- Width: 41 mm
- Basic dynamic load rating: 167 kN
- Basic static load rating: 167 kN
FAG 7314-B-TVP-UA Angular contact ball bearings
FAG 7314-B-TVP-UA bearing, Angular contact ball bearing, Dimensions: 70mm x 150mm x 35mm, Cr: 126000N, C0r: 93000N, Limiting Speeds:5500 1/min.
- Brand: FAG
- Inside Diameter: 70 mm
- Outside Diameter: 150 mm
- Width: 35 mm
- Basic dynamic load rating: 126 kN
- Basic static load rating: 126 kN
FAG 7313-B-MP-UA Angular contact ball bearings
FAG 7313-B-MP-UA bearing, Angular contact ball bearing, Dimensions: 65mm x 140mm x 33mm, Cr: 110000N, C0r: 82000N, Limiting Speeds:7700 1/min.
- Brand: FAG
- Inside Diameter: 65 mm
- Outside Diameter: 140 mm
- Width: 33 mm
- Basic dynamic load rating: 110 kN
- Basic static load rating: 110 kN

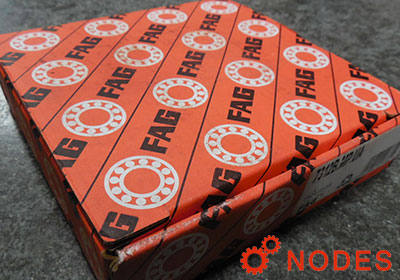

FAG 7312-B-MP-UA Angular contact ball bearings
FAG 7312-B-MP-UA bearing, Angular contact ball bearing, Dimensions: 60mm x 130mm x 31mm, Cr: 96000N, C0r: 69000N, Limiting Speeds:8300 1/min.
- Brand: FAG
- Inside Diameter: 60 mm
- Outside Diameter: 130 mm
- Width: 31 mm
- Basic dynamic load rating: 96 kN
- Basic static load rating: 96 kN

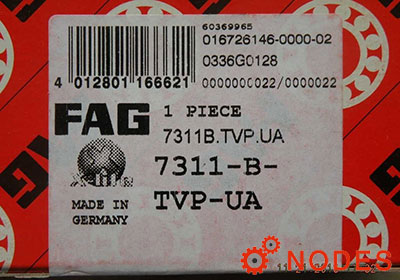

FAG 7311-B-TVP-UA Angular contact ball bearings
FAG 7311-B-TVP-UA bearing, Angular contact ball bearing, Dimensions: 55mm x 120mm x 29mm, Cr: 86000N, C0r: 61000N, Limiting Speeds:7000 1/min.
- Brand: FAG
- Inside Diameter: 55 mm
- Outside Diameter: 120 mm
- Width: 29 mm
- Basic dynamic load rating: 86 kN
- Basic static load rating: 86 kN

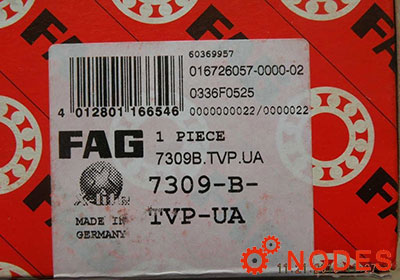

FAG 7309-B-TVP-UA Angular contact ball bearings
FAG 7309-B-TVP-UA bearing, Angular contact ball bearing, Dimensions: 45mm x 100mm x 25mm, Cr: 65000N, C0r: 43000N, Limiting Speeds:8400 1/min.
- Brand: FAG
- Inside Diameter: 45 mm
- Outside Diameter: 100 mm
- Width: 25 mm
- Basic dynamic load rating: 65 kN
- Basic static load rating: 65 kN

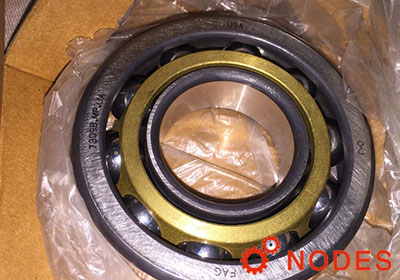

FAG 7309-B-MP-UA Angular contact ball bearings
FAG 7309-B-MP-UA bearing, Angular contact ball bearing, Dimensions: 45mm x 100mm x 25mm, Cr: 65000N, C0r: 43000N, Limiting Speeds:11000 1/min.
- Brand: FAG
- Inside Diameter: 45 mm
- Outside Diameter: 100 mm
- Width: 25 mm
- Basic dynamic load rating: 65 kN
- Basic static load rating: 65 kN
FAG 7305-B-TVP Angular contact ball bearings
FAG 7305-B-TVP bearing, Angular contact ball bearing, Dimensions: 25mm x 62mm x 17mm, Cr: 28000N, C0r: 15800N, Limiting Speeds:14300 1/min.
- Brand: FAG
- Inside Diameter: 25 mm
- Outside Diameter: 62 mm
- Width: 17 mm
- Basic dynamic load rating: 28 kN
- Basic static load rating: 28 kN
FAG 7304-B-JP Angular contact ball bearings
FAG 7304-B-JP bearing, Angular contact ball bearing, Dimensions: 20mm x 52mm x 15mm, Cr: 20400N, C0r: 11100N, Limiting Speeds:17600 1/min.
- Brand: FAG
- Inside Diameter: 20 mm
- Outside Diameter: 52 mm
- Width: 15 mm
- Basic dynamic load rating: 20.4 kN
- Basic static load rating: 20.4 kN

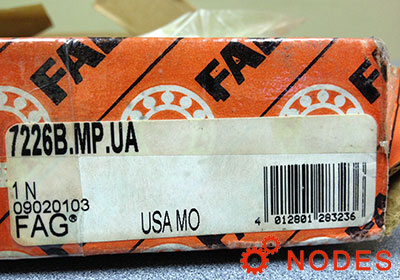

FAG 7226-B-MP-UA Angular contact ball bearings
FAG 7226-B-MP-UA bearing, Angular contact ball bearing, Dimensions: 130mm x 230mm x 40mm, Cr: 200000N, C0r: 204000N, Limiting Speeds:4400 1/min.
- Brand: FAG
- Inside Diameter: 130 mm
- Outside Diameter: 230 mm
- Width: 40 mm
- Basic dynamic load rating: 200 kN
- Basic static load rating: 200 kN
FAG 7222-B-MP-UO Angular contact ball bearings
FAG 7222-B-MP-UO bearing, Angular contact ball bearing, Dimensions: 110mm x 200mm x 38mm, Cr: 167000N, C0r: 154000N, Limiting Speeds:5100 1/min.
- Brand: FAG
- Inside Diameter: 110 mm
- Outside Diameter: 200 mm
- Width: 38 mm
- Basic dynamic load rating: 167 kN
- Basic static load rating: 167 kN
FAG 7216-B-MP-UO Angular contact ball bearings
FAG 7216-B-MP-UO bearing, Angular contact ball bearing, Dimensions: 80mm x 140mm x 26mm, Cr: 85000N, C0r: 72000N, Limiting Speeds:7500 1/min.
- Brand: FAG
- Inside Diameter: 80 mm
- Outside Diameter: 140 mm
- Width: 26 mm
- Basic dynamic load rating: 85 kN
- Basic static load rating: 85 kN
FAG 7211-B-TVP Angular contact ball bearings
FAG 7211-B-TVP bearing, Angular contact ball bearing, Dimensions: 55mm x 100mm x 21mm, Cr: 49000N, C0r: 38500N, Limiting Speeds:8300 1/min.
- Brand: FAG
- Inside Diameter: 55 mm
- Outside Diameter: 100 mm
- Width: 21 mm
- Basic dynamic load rating: 49 kN
- Basic static load rating: 49 kN
FAG 7209-B-TVP-UO Angular contact ball bearings
FAG 7209-B-XL-TVP bearing, Angular contact ball bearing, Dimensions: 45mm x 85mm x 19mm, Cr: 37500N, C0r: 27000N, Limiting Speeds:10000 1/min.
- Brand: FAG
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 19 mm
- Basic dynamic load rating: 37.5 kN
- Basic static load rating: 37.5 kN
FAG 7208-B-TVP Angular contact ball bearings
FAG 7208-B-XL-TVP bearing, Angular contact ball bearing, Dimensions: 40mm x 80mm x 18mm, Cr: 34000N, C0r: 23500N, Limiting Speeds:10900 1/min.
- Brand: FAG
- Inside Diameter: 40 mm
- Outside Diameter: 80 mm
- Width: 18 mm
- Basic dynamic load rating: 34 kN
- Basic static load rating: 34 kN
FAG 7207-B-MP-UA Angular contact ball bearings
FAG 7207-B-XL-MP bearing, Angular contact ball bearing, Dimensions: 35mm x 72mm x 17mm, Cr: 28000N, C0r: 19000N, Limiting Speeds:15800 1/min.
- Brand: FAG
- Inside Diameter: 35 mm
- Outside Diameter: 72 mm
- Width: 17 mm
- Basic dynamic load rating: 28 kN
- Basic static load rating: 28 kN
FAG 7202-B-TVP-UO Angular contact ball bearings
FAG 7202-B-TVP-UO bearing, Angular contact ball bearing, Dimensions: 15mm x 35mm x 11mm, Cr: 8400N, C0r: 4450N, Limiting Speeds:27000 1/min.
- Brand: FAG
- Inside Diameter: 15 mm
- Outside Diameter: 35 mm
- Width: 11 mm
- Basic dynamic load rating: 8.4 kN
- Basic static load rating: 8.4 kN
FAG 7216-B-MP-UA Angular contact ball bearings
FAG 7216-B-MP-UA bearing, Angular contact ball bearing, Dimensions: 80mm x 140mm x 26mm, Cr: 85000N, C0r: 72000N, Limiting Speeds:7500 1/min.
- Brand: FAG
- Inside Diameter: 80 mm
- Outside Diameter: 140 mm
- Width: 26 mm
- Basic dynamic load rating: 85 kN
- Basic static load rating: 85 kN
FAG 7202-B-TVP-UA Angular contact ball bearings
FAG 7202-B-TVP-UA bearing, Angular contact ball bearing, Dimensions: 15mm x 35mm x 11mm, Cr: 8400N, C0r: 4450N, Limiting Speeds:27000 1/min.
- Brand: FAG
- Inside Diameter: 15 mm
- Outside Diameter: 35 mm
- Width: 11 mm
- Basic dynamic load rating: 8.4 kN
- Basic static load rating: 8.4 kN
FAG 7205-B-TVP-UO Angular contact ball bearings
FAG 7205-B-XL-TVP bearing, Angular contact ball bearing, Dimensions: 25mm x 52mm x 15mm, Cr: 15300N, C0r: 9000N, Limiting Speeds:17400 1/min.
- Brand: FAG
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 15 mm
- Basic dynamic load rating: 15.3 kN
- Basic static load rating: 15.3 kN
FAG 62206-2RSR Deep groove ball bearings
FAG 62206-2RSR bearing, single row deep groove ball bearing, lip seals on both sides, Dimensions: 30mm x 62mm x 20mm, Limiting Speeds:6700 1/min.
- Brand: FAG
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 20 mm
- Basic dynamic load rating: 20.7 kN
- Basic static load rating: 20.7 kN
FAG 62204-2RSR Deep groove ball bearings
FAG 62204-2RSR bearing, single row deep groove ball bearing, lip seals on both sides, Dimensions: 20mm x 47mm x 18mm, Limiting Speeds:9400 1/min.
- Brand: FAG
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 18 mm
- Basic dynamic load rating: 13.4 kN
- Basic static load rating: 13.4 kN
FAG 62200-2RSR Deep groove ball bearings
FAG 62200-2RSR bearing, single row deep groove ball bearing, lip seals on both sides, Dimensions: 10mm x 30mm x 14mm, Limiting Speeds:16700 1/min.
- Brand: FAG
- Inside Diameter: 10 mm
- Outside Diameter: 30 mm
- Width: 14 mm
- Basic dynamic load rating: 6.2 kN
- Basic static load rating: 6.2 kN
FAG 6309-2RSR Deep groove ball bearings
FAG 6309-2RSR bearing, single row deep groove ball bearing, lip seals on both sides, Dimensions: 45mm x 100mm x 25mm, Limiting Speeds:4300 1/min.
- Brand: FAG
- Inside Diameter: 45 mm
- Outside Diameter: 100 mm
- Width: 25 mm
- Basic dynamic load rating: 56 kN
- Basic static load rating: 56 kN
FAG 6208-2RSR Deep groove ball bearings
FAG 6208-2RSR bearing, single row deep groove ball bearing, lip seals on both sides, Dimensions: 40mm x 80mm x 18mm, Limiting Speeds:5000 1/min.
- Brand: FAG
- Inside Diameter: 40 mm
- Outside Diameter: 80 mm
- Width: 18 mm
- Basic dynamic load rating: 31 kN
- Basic static load rating: 31 kN
FAG 6002-2RSR Deep groove ball bearings
FAG 6002-2RSR bearing, single row deep groove ball bearing, lip seals on both sides, Dimensions: 15mm x 32mm x 9mm, Limiting Speeds:13300 1/min.
- Brand: FAG
- Inside Diameter: 15 mm
- Outside Diameter: 32 mm
- Width: 9 mm
- Basic dynamic load rating: 5.9 kN
- Basic static load rating: 5.9 kN
FAG 6000-2RSR Deep groove ball bearings
FAG 6000-2RSR bearing, single row deep groove ball bearing, lip seals on both sides, Dimensions: 10mm x 26mm x 8mm, Limiting Speeds:18300 1/min.
- Brand: FAG
- Inside Diameter: 10 mm
- Outside Diameter: 26 mm
- Width: 8 mm
- Basic dynamic load rating: 4.85 kN
- Basic static load rating: 4.85 kN
FAG 6205-C-2ZC3 deep groove ball bearings
FAG 6205-C-2ZC3 bearing, single row deep groove ball bearing, modified internal construction (Generation C), gap seals on both sides, Dimensions: 25mm x 52mm x 15mm, Limiting Speed:18400 1/min.
- Brand: FAG
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 15 mm
- Basic dynamic load rating: 15 kN
- Basic static load rating: 15 kN
FAG 6302-C-2Z Deep groove ball bearing
FAG 6302-C-2Z Deep groove ball bearing, In stock, Dimensions: 15 x 42 x 13 mm, Basic dynamic load rating: 13300N, Static load rating: 5300N, Limiting speed: 23500r/min.
- Brand: FAG
- Inside Diameter: 15 mm
- Outside Diameter: 42 mm
- Width: 13 mm
- Basic dynamic load rating: 13300 kN
- Basic static load rating: 13300 kN
FAG 6302-H-2Z Deep groove ball bearing
FAG 6302-H-2Z Deep groove ball bearing, In stock, Dimensions: 15 x 42 x 13 mm, Basic dynamic load rating: 11450N, Static load rating: 5430N, Limiting speed: 20800r/min.
- Brand: FAG
- Inside Diameter: 15 mm
- Outside Diameter: 42 mm
- Width: 13 mm
- Basic dynamic load rating: 11450 kN
- Basic static load rating: 11450 kN
FAG 6303-C-2Z Deep groove ball bearing
FAG 6303-C-2Z Deep groove ball bearing, In stock, Dimensions: 17 x 47 x 14 mm, Basic dynamic load rating: 15800N, Static load rating: 6500N, Limiting speed: 20800r/min.
- Brand: FAG
- Inside Diameter: 17 mm
- Outside Diameter: 47 mm
- Width: 14 mm
- Basic dynamic load rating: 15800 kN
- Basic static load rating: 15800 kN
FAG S605-2Z Deep groove ball bearing
FAG S605-2Z Deep groove ball bearing, In stock, Dimensions: 5 x 14 x 5 mm, Basic dynamic load rating: 930N, Static load rating: 310N, Limiting speed: 58000r/min.
- Brand: FAG
- Inside Diameter: 5 mm
- Outside Diameter: 14 mm
- Width: 5 mm
- Basic dynamic load rating: 930 kN
- Basic static load rating: 930 kN
