FAG QJ226-N2-MPA bearings | Dimensions: 130x230x40mm
Also known as : QJ226-N2-MPA
- Inside Diameter: 130 mm
- Outside Diameter: 230 mm
- Width: 40 mm
- Basic dynamic load rating: 295 kN
- Basic static load rating: 370 kN
FAG QJ226-N2-MPA Bearing
FAG QJ226-N2-MPA Bearing details
| Number | QJ226-N2-MPA | |
|---|---|---|
| Type |
Four point contact bearings main dimensions to DIN 628-4, can be dismantled, with split inner ring, with two retaining slots |
|
| d | 130mm | |
| D | 230mm | |
| B | 40mm | |
| 45° | Groove angle | |
| a | 127mm | |
| an | 11,7mm | |
| bn | 10,5mm | |
| D1 | 196,2mm | |
| Da max | 216mm | |
| d1 | 165,4mm | |
| da min | 144mm | |
| ra max | 2,5mm | |
| rmin | 3mm | |
| rn | 2mm | |
| α | 35° | Contact angle |
| m | 7,66kg | Mass |
| Cr | 295000N | Basic dynamic load rating, radial |
| C0r | 370000N | Basic static load rating, radial |
| Cur | 15800N | Fatigue limit load, radial |
| nG | 51001/min | Limiting speed |
| nϑr | 28001/min | Reference speed |
Nodes bearings have FAG QJ226-N2-MPA bearings in stock, FAG bearings, main dimensions to DIN 628-4, can be dismantled, with split inner ring, with two retaining slots.
FAG QJ226-N2-MPA bearing cross reference
FAG 7226-B-MP-UA bearing
130mm x 230mm x 40mm
FAG 7226-B-XL-TVP bearing
130mm x 230mm x 40mm
FAG 7326-B-XL-MP bearing
130mm x 280mm x 58mm
FAG 7326-B-XL-TVP bearing
130mm x 280mm x 58mm
NSK QJ226 bearing
130mm x 230mm x 40mm

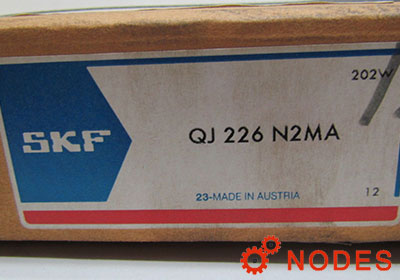

SKF QJ226N2MA bearing
