FAG QJ312-XL-MPA bearings | Dimensions: 60x130x31mm
Also known as : QJ312-XL-MPA
- Inside Diameter: 60 mm
- Outside Diameter: 130 mm
- Width: 31 mm
- Basic dynamic load rating: 152 kN
- Basic static load rating: 126 kN
FAG QJ312-XL-MPA Bearing
FAG QJ312-XL-MPA Bearing details
| Number | QJ312-XL-MPA | |
|---|---|---|
| Type |

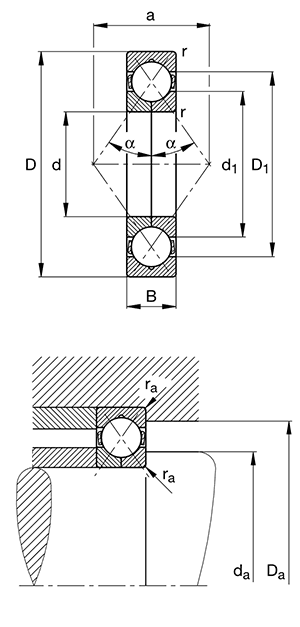

Four point contact bearings main dimensions to DIN 628-4, separable, with split inner ring |
|
| d | 60mm | |
| D | 130mm | |
| B | 31mm | |
| a | 67mm | |
| D1 | 106,9mm | |
| Da max | 118mm | |
| d1 | 84,2mm | |
| da min | 72mm | |
| ra max | 2,1mm | |
| rmin | 2,1mm | |
| α | 35° | Contact angle |
| m | 2,2kg | Mass |
| Cr | 152000N | Basic dynamic load rating, radial |
| C0r | 126000N | Basic static load rating, radial |
| Cur | 9200N | Fatigue limit load, radial |
| nG | 95001/min | Limiting speed |
| nϑr | 47001/min | Reference speed |
Nodes bearings have FAG QJ312-XL-MPA bearings in stock, FAG bearings, main dimensions to DIN 628-4, separable, with split inner ring.
