FAG 53200 thrust bearings | Dimensions: 10x26x11.6mm
Also known as : 53200
- Inside Diameter: 10 mm
- Outside Diameter: 26 mm
- Width: 11.6 mm
- Basic dynamic load rating: 12.7 kN
- Basic static load rating: 17.1 kN
FAG 53200 Bearing

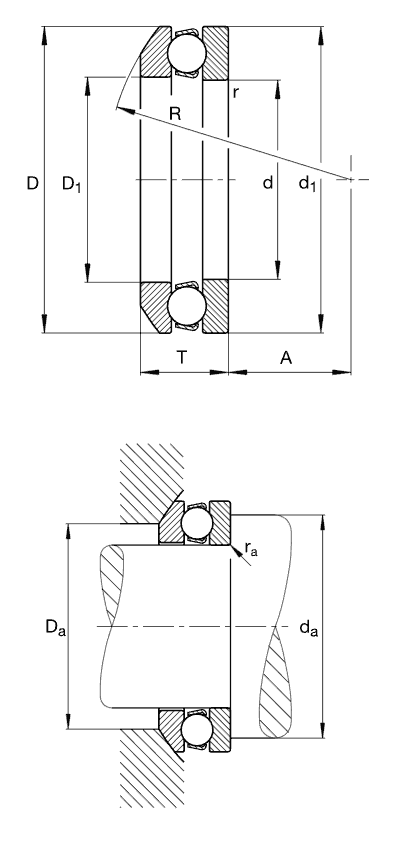

FAG 53200 Bearing details
Number | 53200 | |
---|---|---|
Type |
Axial deep groove ball bearings main dimensions to DIN 711/ISO 104, single direction, with spherical housing locating washer, separable |
|
d | 10mm | |
D | 26mm | |
T | 11,6mm | |
A | 8,5mm | |
D1 | 12mm | |
Da max | 18mm | |
d1 | 26mm | |
da min | 20mm | |
R | 22mm | |
ra max | 0,6mm | |
rmin | 0,6mm | |
m | 0,028kg | Mass |
Ca | 12700N | Basic dynamic load rating, axial |
C0a | 17100N | Basic static load rating, axial |
Cua | 780N | Fatigue limit load, axial |
nG | 109001/min | Limiting speed |
nϑr | 191001/min | Reference speed |
A | 0,0020 | Minimum load factor |
Nodes bearings have FAG 53200 bearings in stock. 53200, Axial deep groove ball bearings, main dimensions to DIN 711/ISO 104, single direction, with spherical housing locating washer, separable.
