FAG 53202+U202 Bearing

FAG 53202+U202 thrust bearings | Dimensions: 15x35x15mm

Also known as : 53202+U202

  • Inside Diameter: 15 mm
  • Outside Diameter: 35 mm
  • Width: 15 mm
  • Basic dynamic load rating: 16.6 kN
  • Basic static load rating: 24.8 kN

Inquire Now


FAG 53202+U202 Bearing

FAG 53202+U202 Bearing details

Number 53202+U202
Type Axial deep groove ball bearings
main dimensions to DIN 711/ISO 104, single direction, with spherical housing locating washer and seating washer, separable

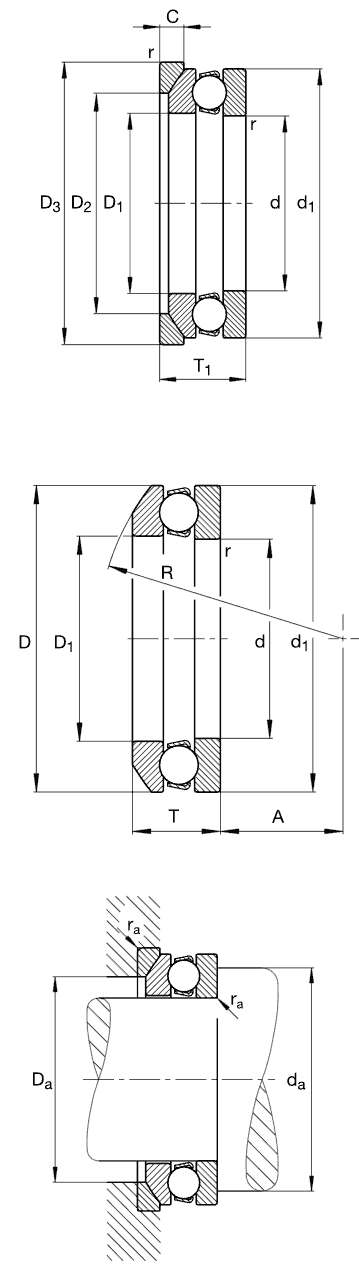

d 15mm
D3 35mm
T1 15mm
A 12mm
C 4mm
D 32mm
D1 17mm
D2 24mm
Da max 24mm
d1 32mm
da min 25mm
R 28mm
ra max 0,6mm
rmin 0,6mm
T 13,3mm
  U202 Designation, seating washer
m 0,048kg Mass
m1 0,013kg Mass, seating washer
Ca 16600N Basic dynamic load rating, axial
C0a 24800N Basic static load rating, axial
Cua 1130N Fatigue limit load, axial
nG 98001/min Limiting speed
nϑr 143001/min Reference speed
A 0,0030 Minimum load factor

Nodes bearings have FAG 53202+U202 bearings in stock. 53202+U202, Axial deep groove ball bearings, main dimensions to DIN 711/ISO 104, single direction, with spherical housing locating washer and seating washer, separable.

FAG 53202+U202 bearing cross reference

NSK 53202 bearing
15mm x 32mm x 13.3mm
NSK 53202U bearing
15mm x 32mm x 15mm
FAG 51102 bearing
15mm x 28mm x 9mm
FAG 51202 bearing
15mm x 32mm x 12mm
FAG 53202 bearing
15mm x 32mm x 13.3mm
FAG 52204 bearing
15mm x 40mm x 26mm
