FAG 54210 Bearing

FAG 54210 thrust bearings | Dimensions: 40x78x42mm

Also known as : 54210

  • Inside Diameter: 40 mm
  • Outside Diameter: 78 mm
  • Width: 42 mm
  • Basic dynamic load rating: 50 kN
  • Basic static load rating: 106 kN

Inquire Now


FAG 54210 Bearing

FAG 54210 Bearing details

Number 54210
Type Axial deep groove ball bearings

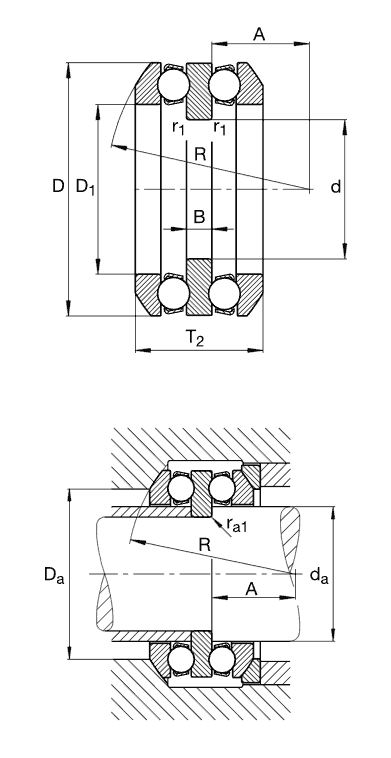

main dimensions to DIN 711/ISO 104, double direction, with spherical housing locating washers, separable

d 40mm
D 78mm
T2 42mm
A 30,5mm
B 9mm
D1 52mm
Da max 62mm
da max 50mm
R 64mm
r1 min 0,6mm
ra max 1mm
ra1 max 0,6mm
rmin 1mm
m 0,625kg Mass
Ca 50000N Basic dynamic load rating, axial
C0a 106000N Basic static load rating, axial
Cua 4850N Fatigue limit load, axial
nG 49501/min Limiting speed
nϑr 58001/min Reference speed
A 0,069 Minimum load factor

Nodes bearings have FAG 54210 bearings in stock. 54210, Axial deep groove ball bearings, main dimensions to DIN 711/ISO 104, double direction, with spherical housing locating washers, separable.
