FAG NN3048-AS-M-SP Super precision cylindrical roller bearin
Also known as : NN3048-AS-M-SP
- Inside Diameter: 240 mm
- Outside Diameter: 360 mm
- Width: 92 mm
- Basic dynamic load rating: 840 kN
- Basic static load rating: 1580 kN
FAG NN3048-AS-M-SP Bearing
FAG NN3048-AS-M-SP Bearing details

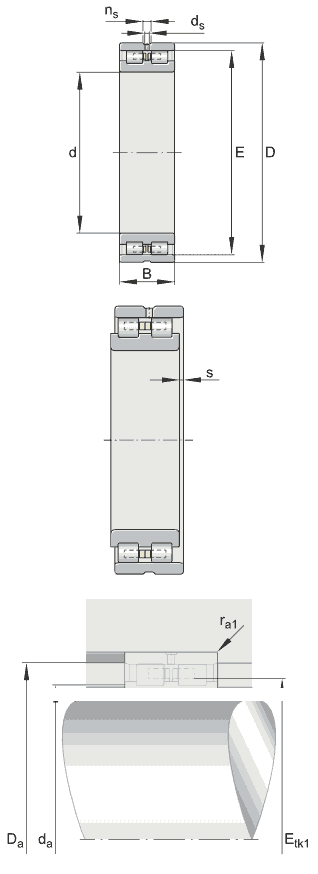

| Number | NN3048-AS-M-SP | |
|---|---|---|
| Type |
Super precision cylindrical roller bearings main dimensions to DIN 5412-4, non-locating bearing, double row, separable, with cage, reduced radial internal clearance, restricted tolerances |
|
| d | 240mm | |
| D | 360mm | |
| B | 92mm | |
| Da max | 337mm | Tolerance: H12 |
| da min | 274mm | Tolerance: h12 |
| ds | 8mm | |
| E | 330mm | |
| ns | 15mm | |
| r1 min | 3mm | |
| ra1 max | 2,5mm | |
| s | 6,1mm | Axial displacement facility from central position |
| m | 32,6kg | ≈ Mass |
| Cr | 840000N | Basic dynamic load rating, radial |
| C0r | 1580000N | Basic static load rating, radial |
| Cur | 174000N | Fatigue limit load, radial |
| nG Fett | 21701/min | Limiting speed for grease lubrication |
| nG Öl | 25501/min | Limiting speed for minimal quantity oil lubrication |
Nodes bearings have FAG NN3048-AS-M-SP bearings in stock, FAG bearings, main dimensions to DIN 5412-4, non-locating bearing, double row, separable, with cage, reduced radial internal clearance, restricted tolerances.
