FAG 22228-E1A-XL-2RSR-M Bearing

FAG 22228-E1A-XL-2RSR-M sealed spherical roller bearings

Also known as : 22228-E1A-XL-2RSR-M

• Inside Diameter: 140 mm
• Outside Diameter: 250 mm
• Width: 68 mm
• Basic dynamic load rating: 830 kN
• Basic static load rating: 970 kN

Inquire Now

FAG 22228-E1A-XL-2RSR-M Bearing

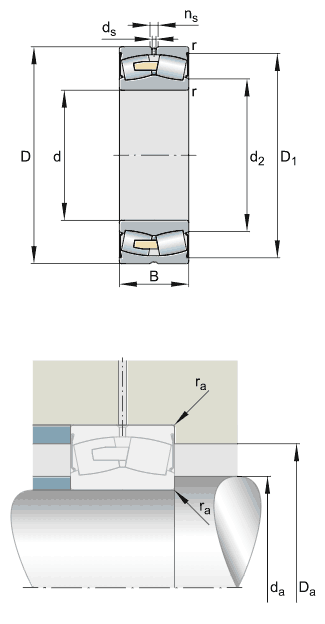

Number	22228-E1A-XL-2RSR-M
Type	Sealed spherical roller bearings Lip seal on both sides
d	140mm
D	250mm
B	68mm
D1	237mm
Da max	236mm
da min	154mm
ds	6,3mm
ns	12,2mm
ra max	2,5mm
rmin	3mm
m	14,1kg	Mass
Cr	830000N	Basic dynamic load rating, radial
C0r	970000N	Basic static load rating, radial
Cur	100000N	Fatigue limit load, radial
nG	8201/min	Limiting speed
e	0,24
Y1	2,81
Y2	4,19
Y0	2,75

Nodes bearings have FAG 22228-E1A-XL-2RSR-M bearings in stock. 22228-E1A-XL-2RSR-M, sealed spherical roller bearings, Lip seal on both sides.
