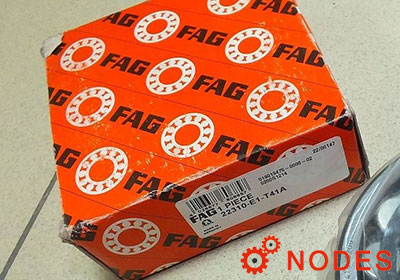

FAG 22310-E1-XL Spherical roller bearings
Also known as : 22310-E1-XL, 22310E, 22310EAE4
- Inside Diameter: 50 mm
- Outside Diameter: 110 mm
- Width: 40 mm
- Basic dynamic load rating: 229 kN
- Basic static load rating: 223 kN
FAG 22310-E1-XL Bearing
FAG 22310-E1-XL Bearing details
| model | 22310-E1-XL |
|---|---|
| d | 50 mm |
| D | 110 mm |
| B | 40 mm |
| D1 | 92.6 mm |
| Da max | 99 mm |
| d2 | 63 mm |
| da min | 61 mm |
| ra max | 2 mm |
| rmin | 2 mm |
| Cr | 229000 N |
| C0r | 223000 N |
| Limiting speed | 6300 1/min |
| Reference speed | 4800 1/min |
| Cur | 20100 N Fatigue limit load, radial |
| e | 0.36 |
| Y1 | 1.86 |
| Y2 | 2.77 |
| Y0 | 1.82 |
| mass | 1.9 kg |
FAG 22310-E1-XL roller bearings, spherical roller bearing, Increased capacity design, main dimensions to DIN 635-2.
FAG 22310-E1-XL bearing cross reference
FAG 21310-E1-XL bearing
50mm x 110mm x 27mm
FAG 22210-E1-XL bearing
50mm x 90mm x 23mm
NSK 22310EAE4 bearing
50mm x 110mm x 40.0mm
NSK 22310EAKE4 bearing
50mm x 110mm x 40.0mm
FAG 21310-E1-XL-K bearing
50mm x 110mm x 27mm
FAG 22210-E1-XL-K bearing
50mm x 90mm x 23mm
FAG 22310-E1-XL-K bearing
50mm x 110mm x 40mm
FAG WS22210-E1-XL-2RSR bearing
50mm x 90mm x 28mm
NTN 22310EAD1 bearing
50mm x 110mm x 40mm
NTN 22310EMD1 bearing
50mm x 110mm x 40mm
NTN 22310EAKD1 bearing
50mm x 110mm x 40mm
