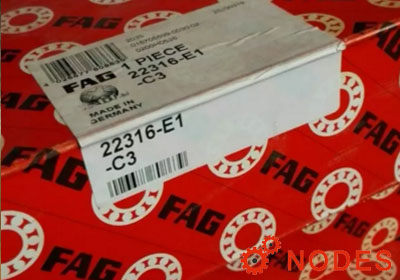

FAG 22316-E1-XL Spherical roller bearings
Also known as : 22316-E1-XL, 22316E, 22316EAE4
- Inside Diameter: 80 mm
- Outside Diameter: 170 mm
- Width: 58 mm
- Basic dynamic load rating: 495 kN
- Basic static load rating: 510 kN
FAG 22316-E1-XL Bearing
FAG 22316-E1-XL Bearing details
| model | 22316-E1-XL |
|---|---|
| d | 80 mm |
| D | 170 mm |
| B | 58 mm |
| D1 | 145.1 mm |
| Da max | 158 mm |
| d2 | 98.3 mm |
| da min | 92 mm |
| ra max | 2.1 mm |
| rmin | 2.1 mm |
| Cr | 495000 N |
| C0r | 510000 N |
| Limiting speed | 4250 1/min |
| Reference speed | 3400 1/min |
| Cur | 45000 N Fatigue limit load, radial |
| e | 0.34 |
| Y1 | 1.99 |
| Y2 | 2.96 |
| Y0 | 1.94 |
| mass | 6.27 kg |
FAG 22316-E1-XL roller bearings, spherical roller bearing, Increased capacity design, main dimensions to DIN 635-2.
FAG 22316-E1-XL bearing cross reference
FAG 21316-E1-XL bearing
80mm x 170mm x 39mm
FAG 22216-E1-XL bearing
80mm x 140mm x 33mm

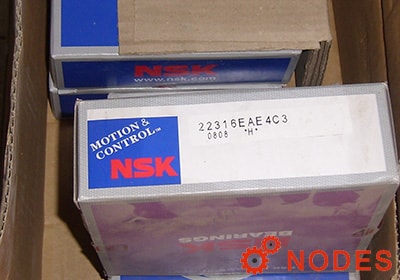

NSK 22316EAE4C3 bearing
80mm x 170mm x 58.0mm

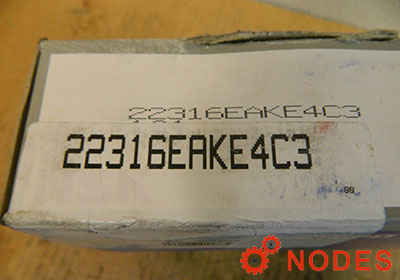

NSK 22316EAKE4C3 bearing
80mm x 170mm x 58.0mm
FAG 21316-E1-XL-K bearing
80mm x 170mm x 39mm
FAG 22216-E1-XL-K bearing
80mm x 140mm x 33mm
FAG 22316-E1-XL-K bearing
80mm x 170mm x 58mm
FAG WS22216-E1-XL-2RSR bearing
80mm x 140mm x 40mm
NTN 22316EAD1 bearing
80mm x 170mm x 58mm
NTN 22316EMD1 bearing
80mm x 170mm x 58mm
NTN 22316EAKD1 bearing
80mm x 170mm x 58mm
