FAG 23038-E1A-XL-M Spherical roller bearings
Also known as : 23038-E1A-XL-M, 23038CAE4
- Inside Diameter: 190 mm
- Outside Diameter: 290 mm
- Width: 75 mm
- Basic dynamic load rating: 1080 kN
- Basic static load rating: 1550 kN

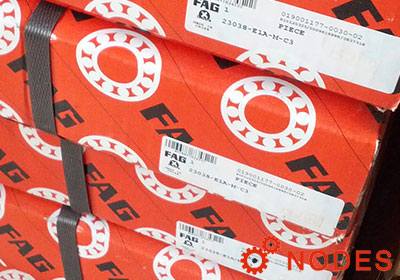

FAG 23038-E1A-XL-M Bearing
FAG 23038-E1A-XL-M Bearing details
model | 23038-E1A-XL-M |
---|---|
d | 190 mm |
D | 290 mm |
B | 75 mm |
D1 | 264.5 mm |
Da max | 279.8 mm |
da min | 200.2 mm |
ds | 8 mm |
ns | 15 mm |
ra max | 2.1 mm |
rmin | 2.1 mm |
Cr | 1080000 N |
C0r | 1550000 N |
Limiting speed | 2490 1/min |
Reference speed | 1660 1/min |
Cur | 179000 N Fatigue limit load, radial |
e | 0.23 |
Y1 | 2.98 |
Y2 | 4.44 |
Y0 | 2.92 |
mass | 18.3 kg |
FAG 23038-E1A-XL-M roller bearings, spherical roller bearing, main dimensions to DIN 635-2.
