FAG 24024-BE-XL-2VSR sealed spherical roller bearings
Also known as : 24024-BE-XL-2VSR
- Inside Diameter: 120 mm
- Outside Diameter: 180 mm
- Width: 60 mm
- Basic dynamic load rating: 450 kN
- Basic static load rating: 690 kN
FAG 24024-BE-XL-2VSR Bearing

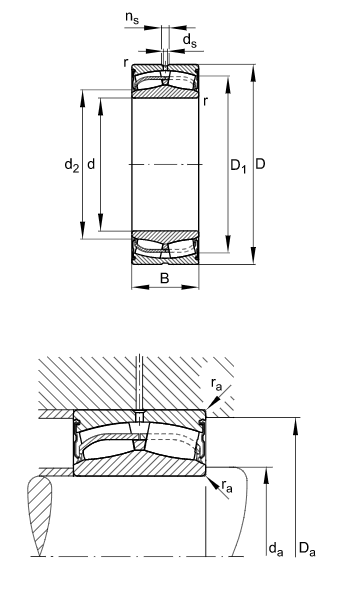

FAG 24024-BE-XL-2VSR Bearing details
Number | 24024-BE-XL-2VSR | |
---|---|---|
Type |
Sealed spherical roller bearings lip seals on both sides, for continuous casting machines |
|
d | 120mm | |
D | 180mm | |
B | 60mm | |
D1 | 170,5mm | |
Da max | 171,2mm | |
d2 | 131mm | |
da min | 128,8mm | |
ds | 3,2mm | |
ns | 6,5mm | |
ra max | 2mm | |
rmin | 2mm | |
m | 5,6kg | Mass |
Cr | 450000N | Basic dynamic load rating, radial |
C0r | 690000N | Basic static load rating, radial |
Cur | 86000N | Fatigue limit load, radial |
nG | 8601/min | Limiting speed |
e | 0,29 | |
Y1 | 2,33 | |
Y2 | 3,47 | |
Y0 | 2,28 |
Nodes bearings have FAG 24024-BE-XL-2VSR bearings in stock. 24024-BE-XL-2VSR, sealed spherical roller bearings, lip seals on both sides, for continuous casting machines.
