FAG 24122-BE-XL Spherical roller bearings
Also known as : 24122-BE-XL, 24122E, 24122EAE4
- Inside Diameter: 110 mm
- Outside Diameter: 180 mm
- Width: 69 mm
- Basic dynamic load rating: 530 kN
- Basic static load rating: 750 kN

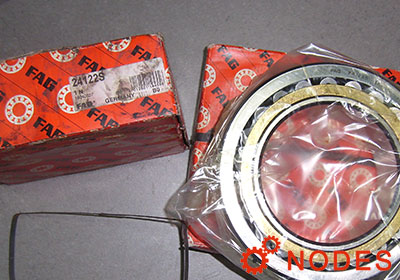

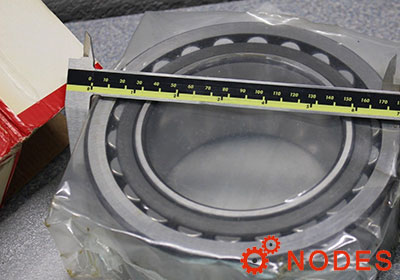

FAG 24122-BE-XL Bearing
FAG 24122-BE-XL Bearing details
model | 24122-BE-XL |
---|---|
d | 110 mm |
D | 180 mm |
B | 69 mm |
D1 | 154.9 mm |
Da max | 169 mm |
d2 | 125.6 mm |
da min | 121 mm |
ra max | 2 mm |
rmin | 2 mm |
Cr | 530000 N |
C0r | 750000 N |
Limiting speed | 3350 1/min |
Reference speed | 1960 1/min |
Cur | 84000 N Fatigue limit load, radial |
e | 0.34 |
Y1 | 1.96 |
Y2 | 2.92 |
Y0 | 1.92 |
mass | 6.8 kg |
FAG 24122-BE-XL roller bearings, spherical roller bearing, Increased capacity design, main dimensions to DIN 635-2.
