FAG 29334-E1-XL bearings
Also known as : 29334-E1-XL, 29334E
- Inside Diameter: 170 mm
- Outside Diameter: 280 mm
- Width: 67 mm
- Basic dynamic load rating: 1230 kN
- Basic static load rating: 3500 kN

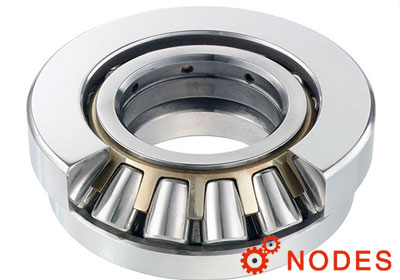

FAG 29334-E1-XL Bearing

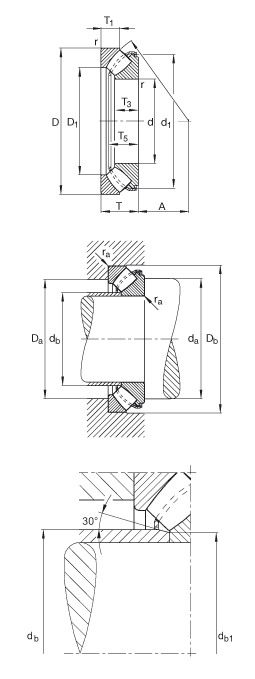

FAG 29334-E1-XL Bearing details
| model | 29334-E1-XL |
|---|---|
| d | 170 mm |
| D | 280 mm |
| T | 67 mm |
| A | 96 mm |
| D1 | 215 mm |
| Da max | 247 mm |
| Db min | 284 mm |
| d1 | 255.7 mm |
| da min | 220 mm |
| db max | 188 mm |
| ra max | 2.5 mm |
| rmin | 3 mm |
| T1 | 30.5 mm |
| T3 | 42.2 mm |
| T5 | 60.5 mm |
| Ca | 1230000 N |
| C0a | 3500000 N |
| Limiting speed | 2390 1/min |
| Reference speed | 1260 1/min |
| Cua | 445000 N Fatigue limit load, radial |
| mass | 14.2 kg |
As FAG bearing distributor, Nodes have FAG 29334-E1-XL bearings in stock, main dimensions to DIN 728/ISO 104, single direction, separable. More related products: FAG thrust roller bearings catalogue.
FAG 29334-E1-XL bearing cross reference
