FAG 29488-E1-XL-MB bearings
Also known as : 29488-E1-XL-MB, 29488EM
- Inside Diameter: 440 mm
- Outside Diameter: 780 mm
- Width: 206 mm
- Basic dynamic load rating: 9700 kN
- Basic static load rating: 32500 kN
FAG 29488-E1-XL-MB Bearing

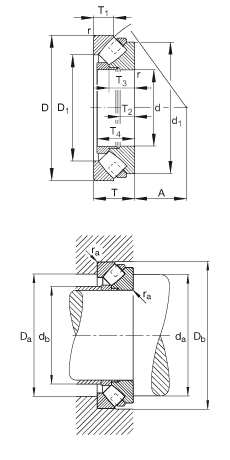

FAG 29488-E1-XL-MB Bearing details
| model | 29488-E1-XL-MB |
|---|---|
| d | 440 mm |
| D | 780 mm |
| T | 206 mm |
| A | 257 mm |
| D1 | 577 mm |
| Da max | 684 mm |
| Db min | 794 mm |
| d1 | 715 mm |
| da min | 610 mm |
| db max | 477 mm |
| ra max | 8 mm |
| rmin | 9.5 mm |
| T1 | 101 mm |
| T2 | 77 mm |
| T3 | 134 mm |
| T4 | 199 mm |
| Ca | 9700000 N |
| C0a | 32500000 N |
| Limiting speed | 780 1/min |
| Reference speed | 375 1/min |
| Cua | 2850000 N Fatigue limit load, radial |
| mass | 418 kg |
As FAG bearing distributor, Nodes have FAG 29488-E1-XL-MB bearings in stock, main dimensions to DIN 728/ISO 104, single direction, separable. More related products: FAG thrust roller bearings catalogue.
