FAG 32024-X-XL tapered roller bearings
Also known as : 32024-X-XL, T4DC120,
- Inside Diameter: 120 mm
- Outside Diameter: 180 mm
- Width: 38 mm
- Basic dynamic load rating: 295 kN
- Basic static load rating: 420 kN

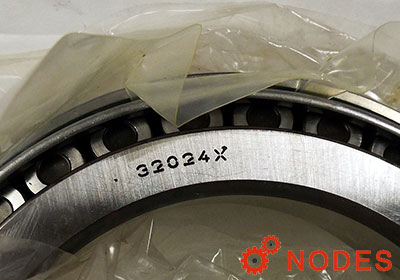

FAG 32024-X-XL Bearing
FAG 32024-X-XL Bearing details
model | 32024-X-XL |
---|---|
Comparative designation to DIN ISO 355 |
T4DC120 |
d | 120 mm |
D | 180 mm |
T | 38 mm |
a | 40 mm |
B | 38 mm |
C | 29 mm |
Ca min | 7 mm |
Cb min | 9 mm |
Da max | 170 mm |
Da min | 161 mm |
Db min | 173 mm |
d1 | 151.2 mm |
da max | 131 mm |
db min | 130 mm |
r1,2 min | 2.5 mm |
r3,4 min | 2 mm |
ra max | 2.5 mm |
rb max | 2 mm |
Cr | 295000 N, Basic dynamic load rating, radial |
C0r | 420000 N, Basic static load rating, radial |
Limiting speed | 3700 1/min |
Reference speed | 2460 1/min |
Cur | 62000 N, Fatigue limit load, radial |
e | 0.46 |
Y | 1.31 |
Y0 | 0.72 |
mass | 3.29 kg |
Nodes bearings have FAG 32024-X-XL roller bearings in stock, more related FAG bearings: FAG tapered roller bearings catalogue, main dimensions to DIN ISO 355 / DIN 720, separable, adjusted or in pairs.
