FAG 231SM280-MA split spherical roller bearings
Also known as : 231SM280-MA
- Inside Diameter: 280 mm
- Outside Diameter: 500 mm
- Width: 160 mm
- Basic dynamic load rating: 2330 kN
- Basic static load rating: 3900 kN
FAG 231SM280-MA Bearing

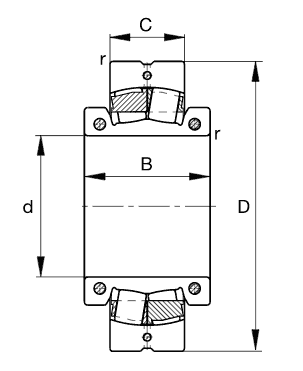

FAG 231SM280-MA Bearing details
| Number | 231SM280-MA | |
|---|---|---|
| Type |
Split spherical roller bearings split spherical roller bearings |
|
| d | 280mm | |
| D | 500mm | |
| C | 160mm | |
| B | 218mm | |
| rmin | 5mm | |
| m | 145kg | Mass |
| Cr | 2330000N | Basic dynamic load rating, radial |
| C0r | 3900000N | Basic static load rating, radial |
| Cur | 270000N | Fatigue limit load, radial |
| nG | 4851/min | Limiting speed |
| e | 0,29 | |
| Y1 | 2,32 | |
| Y2 | 3,45 | |
| Y0 | 2,26 | |
| Fa max | 44000N | Permissible axial load, for inner ring without axial abutment |
| Mi | 190Nm | Tightening torque per clamping screw |
| Ma | 120Nm | Tightening torque per clamping screw |
| 23160K | Designation, spherical roller bearing, unsplit | |
| H3160 | Designation, adapter sleeve | |
| SNS3160-H-D | Designation, plummer block housing |
Nodes bearings have FAG 231SM280-MA bearings in stock. 231SM280-MA, split spherical roller bearings.
