FAG WS22214-E1-XL-2RSR sealed spherical roller bearings
Also known as : WS22214-E1-XL-2RSR
- Inside Diameter: 70 mm
- Outside Diameter: 125 mm
- Width: 38 mm
- Basic dynamic load rating: 211 kN
- Basic static load rating: 226 kN
FAG WS22214-E1-XL-2RSR Bearing
FAG WS22214-E1-XL-2RSR Bearing details
| Number | WS22214-E1-XL-2RSR | |
|---|---|---|
| Type |
Sealed spherical roller bearings lip seals on both sides |
|
| d | 70mm | |
| D | 125mm | |
| B | 38mm | |
| D1 | 113,5mm | |
| Da max | 116mm | |
| d2 | 82,5mm | |
| da min | 82,5mm | |
| ds | 3,2mm | |
| ns | 6,5mm | |
| ra max | 1,5mm | |
| rmin | 1,5mm | |
| m | 2,1kg | Mass |
| Cr | 211000N | Basic dynamic load rating, radial |
| C0r | 226000N | Basic static load rating, radial |
| Cur | 28500N | Fatigue limit load, radial |
| nG | 16701/min | Limiting speed |
| e | 0,23 | |
| Y1 | 2,95 | |
| Y2 | 4,4 | |
| Y0 | 2,89 |
Nodes bearings have FAG WS22214-E1-XL-2RSR bearings in stock. WS22214-E1-XL-2RSR, sealed spherical roller bearings, lip seals on both sides.
FAG WS22214-E1-XL-2RSR bearing cross reference
FAG 21314-E1-XL bearing
70mm x 150mm x 35mm
FAG 22214-E1-XL bearing
70mm x 125mm x 31mm
FAG 22314-E1-XL bearing
70mm x 150mm x 51mm

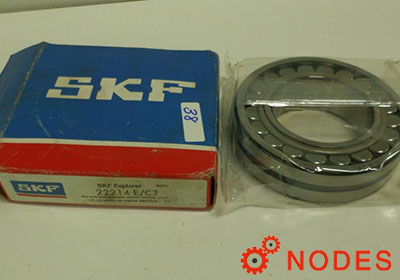

SKF 22214E bearing
70mm x 125mm x 31mm
NSK 22214EAE4 bearing
70mm x 125mm x 31.0mm
NSK 22214EAKE4 bearing
70mm x 125mm x 31.0mm
FAG 21314-E1-XL-K bearing
70mm x 150mm x 35mm
FAG 22214-E1-XL-K bearing
70mm x 125mm x 31mm
FAG 22314-E1-XL-K bearing
70mm x 150mm x 51mm
FAG WS22314-E1-XL-2RSR bearing
70mm x 150mm x 60mm
NTN 22214EAD1 bearing
70mm x 125mm x 31mm
