IKO CF20-1BUUR cam followers
Also known as : CF20-1BUUR, KR47-PP
- D: 47 mm
- d1: 20 mm
- C: 24 mm
- Cr: 20700 kN
- C0r: 34600 kN
IKO CF20-1BUUR
IKO CF20-1BUUR Cam Follower Bearing details
| model |
CF20-1BUUR Crowned outer ring |
|---|---|
| D | 47 mm |
| C | 24 mm |
| d1 | 20 mm |
| G | M20x1.5 |
| G1 | 21 mm |
| B | 25.6max mm |
| B1 | 66.1max mm |
| B2 | 40.5 mm |
| B3 | 9 mm |
| C1 | 0.8 mm |
| g1 | 6 mm |
| g2 | 4 mm |
| H | 8 mm |
| rs min | 1 mm |
| fmin | 34 mm, Mounting dimension |
| Maximum tightening torque | 119 N.m |
| C | 20700 N, Basic dynamic load rating |
| C0 | 34600 N, Basic static load rating |
| Maximum allowable load | 34600 N |
| Mass | 385 g (approx.) |
IKO CF20-1BUUR cam followers, Cam follower bearings, Crowned outer ring, Sealed type.
IKO CF20-1BUUR bearing cross reference

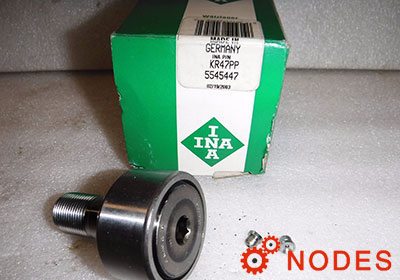

INA KR47-PP bearing
D:47mm, d1:20mm, B:66mm
IKO CF20-1BR bearing
D:47mm, d1:20mm, C:24mm
IKO CF20-1B bearing
D:47mm, d1:20mm, C:24mm
