IKO CF5BUUR cam followers
Also known as : CF5BUUR, KR13
- D: 13 mm
- d1: 5 mm
- C: 9 mm
- Cr: 2520 kN
- C0r: 2140 kN
IKO CF5BUUR

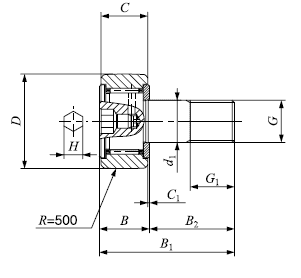

IKO CF5BUUR Cam Follower Bearing details
| model |
CF5BUUR Crowned outer ring |
|---|---|
| D | 13 mm |
| C | 9 mm |
| d1 | 5 mm |
| G | M 5x0.8 |
| G1 | 7.5 mm |
| B | 10 mm |
| B1 | 23 mm |
| B2 | 13 mm |
| B3 | -- mm |
| C1 | 0.5 mm |
| g1 | -- mm |
| g2 | -- mm |
| H | 3 mm |
| rs min | 0.3 mm |
| fmin | 9.3 mm, Mounting dimension |
| Maximum tightening torque | 1.6 N.m |
| C | 2520 N, Basic dynamic load rating |
| C0 | 2140 N, Basic static load rating |
| Maximum allowable load | 1260 N |
| Mass | 10.3 g (approx.) |
IKO CF5BUUR cam followers bearing, Cam follower bearings, Crowned outer ring, Sealed type.
