IKO CRW1-60 cross roller way guides
Also known as : CRW1-60, NV160, SV160
- Width: 8.5 mm
- High: 4 mm
- Way Length: 60 mm
- Cr: 0.125 kN
- C0r: 0.12 kN
IKO CRW1-60

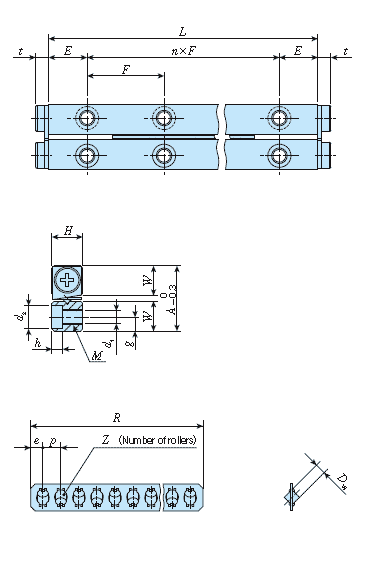

IKO CRW1-60 crossed roller guide way details
| Identification number | CRW1-60 |
|---|---|
| Mass - Way | 0.12 kg/m |
| Mass - Roller cage |
0.38 g (shows the mass of a roller cage with ten cylindrical rollers) |
| A | 8.5 mm |
| H | 4 mm |
| L(n X F) | 60 (5 x 10) mm |
| E | 5 mm |
| Dw | 1.5 mm |
| R | 43.5 mm |
| Z | 14 mm |
| p | 3 mm |
| e | 2.25 mm |
| W | 3.9 mm |
| g | 1.8 mm |
| M | M2 mm |
| d1 | 1.65 mm |
| d2 | 3 mm |
| h | 1.4 mm |
| t | 1.7 mm |
| Cu | 125 N, Basic dynamic load rating |
| C0u | 120 N, Basic static load rating |
| Fu | 39.8 N, Allowable load |
As IKO bearings distributor, Nodes bearings has IKO CRW1-60 linear crossed roller way guides in stock.
IKO CRW1-60 bearing cross reference
