IKO CRWG4-200 Anti-creet cage crossed roller way
Also known as : CRWG4-200
- Width: 22 mm
- High: 11 mm
- Way Length: 200 mm
- Cr: 13.7 kN
- C0r: 23.5 kN
IKO CRWG4-200

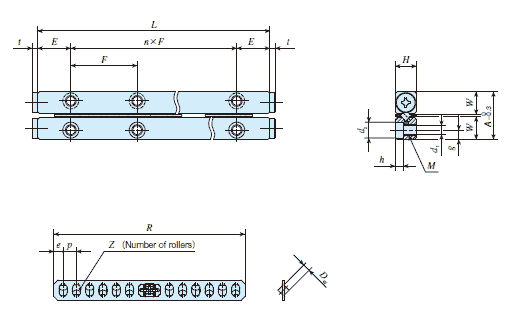

IKO CRWG4-200 crossed roller guide way details
Identification number | CRWG4-200 |
---|---|
Mass - Way | 145 g |
Mass - Roller cage | 16.7 g |
A | 22 mm |
H | 11 mm |
L(n X F) | 200 (4 x 40) mm |
E | 20 mm |
Dw | 4 mm |
R | 157 mm |
Z | 20 mm |
p | 7 mm |
e | 5 mm |
W | 10 mm |
g | 4.5 mm |
M | M5 |
d1 | 4.3 mm |
d2 | 7.5 mm |
h | 4.1 mm |
t | 2 mm |
C | 13700 N, Basic dynamic load rating |
C0 | 23500 N, Basic static load rating . |
Fu | 7830 N, Allowable load |
86 mm, Maximum stroke length |
