IKO NA4922UU needle bearings
Also known as : NA4922UU
- Inside Diameter: 110 mm
- Outside Diameter: 150 mm
- Width: 40 mm
- Basic dynamic load rating: 140 kN
- Basic static load rating: 322 kN
IKO NA4922UU needle bearing

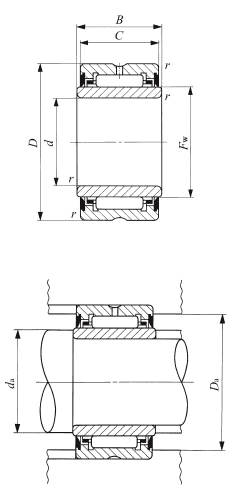

IKO NA4922UU Bearing details
model | NA4922UU |
---|---|
d | 110 mm |
D | 150 mm |
C | 40 mm |
B | 41 mm |
Fw | 125 mm |
rs min | 1.1 mm |
da min | 116.5 mm |
da max | 123 mm |
Da max | 143.5 mm |
C | 140000 N, Basic dynamic load rating |
C0 | 322000 N, Basic static load rating |
Allowable rotational speed | 1500 rpm |
Assembled inner ring | LRTZ11012541 |
Mass | 2150 g (approx.) |
Nodes bearings, IKO needle roller bearings wholesaler, have IKO NA4922UU needle bearings in stock. machined type Needle roller bearings with inner ring, with seal.
