IKO NA6908UU needle bearings
Also known as : NA6908UU , NA6908-2RSR
- Inside Diameter: 40 mm
- Outside Diameter: 62 mm
- Width: 40 mm
- Basic dynamic load rating: 63.7 kN
- Basic static load rating: 117 kN
IKO NA6908UU needle bearing

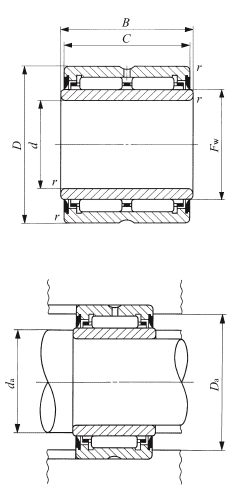

IKO NA6908UU Bearing details
| model | NA6908UU |
|---|---|
| d | 40 mm |
| D | 62 mm |
| C | 40 mm |
| B | 41 mm |
| Fw | 48 mm |
| rs min | 0.6 mm |
| da min | 44 mm |
| da max | 47 mm |
| Da max | 58 mm |
| C | 63700 N, Basic dynamic load rating |
| C0 | 117000 N, Basic static load rating |
| Allowable rotational speed | 4000 rpm |
| Assembled inner ring | LRTZ404841 |
| Mass | 440 g (approx.) |
Nodes bearings, IKO needle roller bearings wholesaler, have IKO NA6908UU needle bearings in stock. machined type Needle roller bearings with inner ring, with seal.
