IKO NA6909 Bearing

IKO NA6909 needle bearings

Also known as : NA6909

  • Inside Diameter: 45 mm
  • Outside Diameter: 68 mm
  • Width: 40 mm
  • Basic dynamic load rating: 74.6 kN
  • Basic static load rating: 147 kN

Inquire Now


IKO NA6909 needle bearing

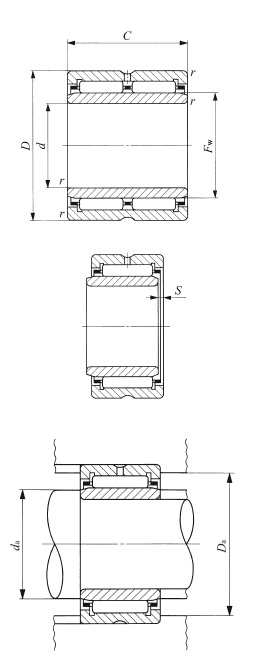

IKO NA6909 Bearing details

model NA6909
d 45 mm
D 68 mm
C 40 mm
Fw 52 mm
rs min 0.6 mm
S 0.3 mm
da min 49 mm
da max 51 mm
Da max 64 mm
C 74600 N, Basic dynamic load rating
C0 147000 N, Basic static load rating
Allowable rotational speed 7500 rpm
Assembled inner ring LRT455240
Mass 520 g (approx.)

Nodes bearings, IKO needle roller bearings wholesaler, have IKO NA6909 needle bearings in stock. machined type Needle roller bearings with inner ring.

IKO NA6909 bearing cross reference

IKO RNA 49/38 bearing
D:45mm * 58mm * 20mm
IKO GTR 455930 bearing
D:45mm * 59mm * 30mm
IKO GTRI456430 bearing
45mm * 64mm * 30mm
IKO TAF 455520 bearing
D:45mm * 55mm * 20mm
IKO TAF 455530 bearing
D:45mm * 55mm * 30mm
IKO NA4909 bearing
45mm * 68mm * 22mm
IKO NA4909UU bearing
45mm * 68mm * 22mm
IKO NA6909UU bearing
45mm * 68mm * 40mm
IKO RNAF455517 bearing
45mm * 55mm * 17mm
IKO RNAFW455534 bearing
45mm * 55mm * 34mm
IKO RNAF456220 bearing
45mm * 62mm * 20mm
IKO RNAFW456240 bearing
45mm * 62mm * 40mm
