IKO NAF102612 needle roller bearings
Also known as : NAO10x26x12
- Inside Diameter: 10 mm
- Outside Diameter: 26 mm
- Width: 12 mm
- Basic dynamic load rating: 9.79 kN
- Basic static load rating: 9.68 kN
IKO NAF102612 needle bearing
IKO NAF102612 Bearing details
| Identification number | NAF102612 |
|---|---|
| Brand | IKO |
| Catagory | Needle roller bearings with separable cage |
| Mass | 0.036 kg |

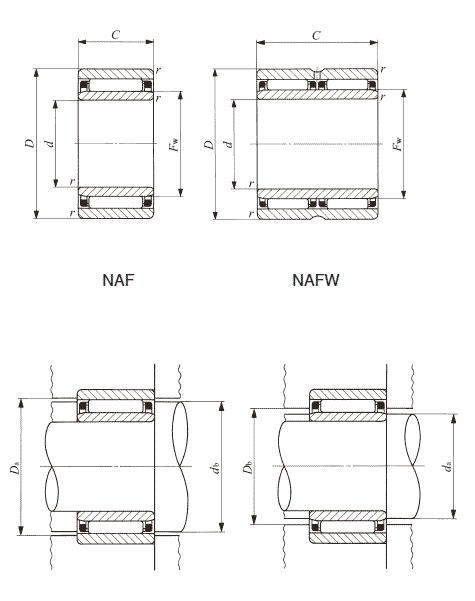

| Boundary dimensions | |
| d | 10 mm |
| D | 26 mm |
| C | 12 mm |
| r s min | 0.3 mm |
| F w | 14 mm |
| Standard mounting dimensions | |
| d b | 19.4 mm |
| D a Max. | 24 mm |
| d a Min. | 12 mm |
| d a Max. | 13 mm |
| D b | 14.6 mm |
| C | 9.79 kN, Basic dynamic load rating |
| C 0 | 9.68 kN, Basic static load rating |
| Allowable rotational speed | 35000 rpm |
| Assembled inner ring | LRT101412 |
IKO NAF102612 is NAF Series Needle Roller Bearings With Inner Ring.
IKO NAF102612 bearing cross reference
IKO RNA498 bearing
D:10mm * 19mm * 11mm
IKO NA4900 bearing
10mm * 22mm * 13mm
IKO NA4900UU bearing
10mm * 22mm * 13mm
IKO RNAF101710 bearing
10mm * 17mm * 10mm
IKO RNAF102012 bearing
10mm * 20mm * 12mm
IKO TAFI102216 bearing
10mm * 22mm * 16mm
IKO TAFI102220 bearing
10mm * 22mm * 20mm

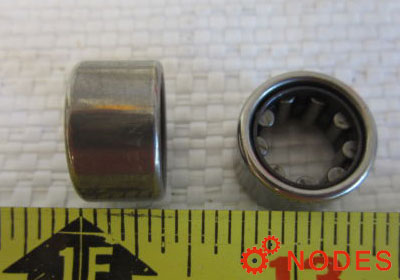

IKO TA 1010Z bearing
10mm * 17mm * 10mm
IKO TA 1012Z bearing
10mm * 17mm * 12mm
IKO TA 1015Z bearing
10mm * 17mm * 15mm

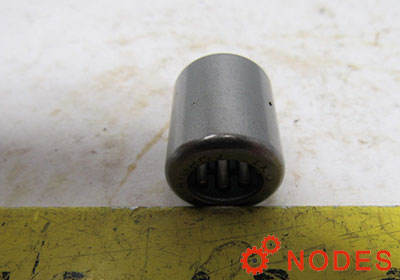

IKO TA 1020Z bearing
10mm * 17mm * 20mm
