IKO NAF122413 needle roller bearings
Also known as : NAO12x24x13
- Inside Diameter: 12 mm
- Outside Diameter: 24 mm
- Width: 13 mm
- Basic dynamic load rating: 8.62 kN
- Basic static load rating: 11 kN
IKO NAF122413 needle bearing
IKO NAF122413 Bearing details
| Identification number | NAF122413 |
|---|---|
| Brand | IKO |
| Catagory | Needle roller bearings with separable cage |
| Mass | 0.03 kg |
| Boundary dimensions | |
| d | 12 mm |
| D | 24 mm |
| C | 13 mm |
| r s min | 0.3 mm |
| F w | 16 mm |
| Standard mounting dimensions | |
| d b | 19.6 mm |
| D a Max. | 22 mm |
| d a Min. | 14 mm |
| d a Max. | 15 mm |
| D b | 16.6 mm |
| C | 8.62 kN, Basic dynamic load rating |
| C 0 | 11 kN, Basic static load rating |
| Allowable rotational speed | 30000 rpm |
| Assembled inner ring | LRT121613 |
IKO NAF122413 is NAF Series Needle Roller Bearings With Inner Ring.
IKO NAF122413 bearing cross reference

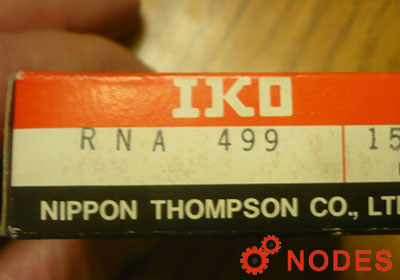

IKO RNA499 bearing
D:12mm * 20mm * 11mm
IKO NA4901 bearing
12mm * 24mm * 13mm

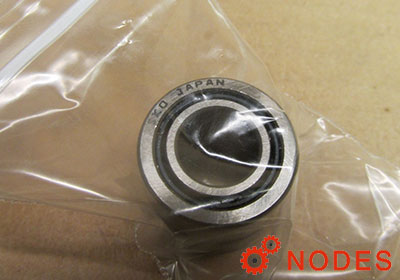

IKO NA6901 bearing
