IKO TRI203820 Bearing

IKO TRI203820 needle bearings

Also known as : TRI203820

  • Inside Diameter: 20 mm
  • Outside Diameter: 38 mm
  • Width: 20 mm
  • Basic dynamic load rating: 28.9 kN
  • Basic static load rating: 35 kN

Inquire Now


IKO TRI203820 needle bearing

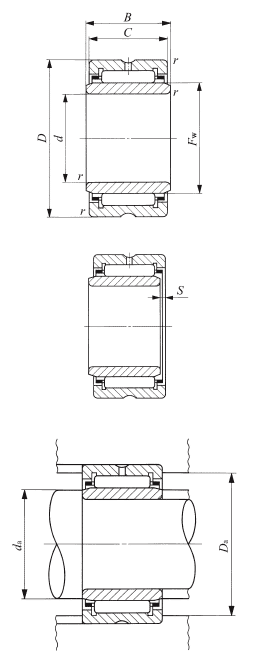

IKO TRI203820 Bearing details

modelTRI203820
d20 mm
D38 mm
C20 mm
B20.5 mm
Fw25 mm
rs min0.3 mm
S0.3 mm
da min22 mm
da max24 mm
Da max36 mm
C28900 N, Basic dynamic load rating
C035000 N, Basic static load rating
Allowable rotational speed16000 rpm
Assembled inner ringLRT202520
Mass99 g (approx.)

Nodes bearings, IKO needle roller bearings wholesaler, have IKO TRI203820 needle bearings in stock. machined type Needle roller bearings with inner ring.

IKO TRI203820 bearing cross reference

IKO RNA4902 bearing
D:20mm * 28mm * 13mm
IKO GTR203320 bearing
D:20mm * 33mm * 20mm
IKO GTRI203820 bearing
20mm * 38mm * 20mm
IKO GTRI203825 bearing
20mm * 38mm * 25mm
IKO TAF202816 bearing
D:20mm * 28mm * 16mm
IKO TAF202820 bearing
D:20mm * 28mm * 20mm
IKO NA4904 bearing
20mm * 37mm * 17mm
IKO NA6904 bearing
20mm * 37mm * 30mm
IKO NA4904UU bearing
20mm * 37mm * 17mm
IKO NA6904UU bearing
20mm * 37mm * 30mm
IKO RNA6902 bearing
D:20mm * 28mm * 23mm
IKO RNAF202813 bearing
20mm * 28mm * 13mm
