IKO PHS20EC rod end bearing

IKO PHS20EC rod ends | d:20,d2:46,l4:100mm

Also known as : PHS20EC

  • d: 20 mm
  • d2: 46 mm
  • Height: 100 mm
  • Basic dynamic load rating: 61.6 kN
  • Basic static load rating: 30 kN

Inquire Now


IKO PHS20EC

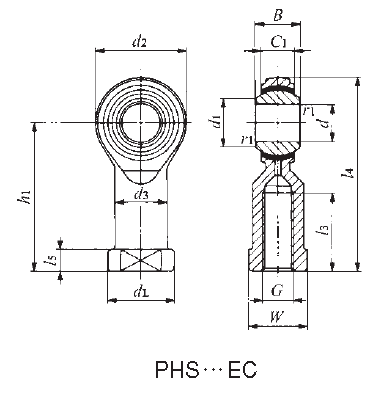

IKO PHS20EC Bearing details

Identification number PHS20EC
Type Maintenance-free type PILLOBALL Rod ends
Mass 380 g
d 20 mm
Thread G M20X1.5
d2 46 mm
C1 18 mm
B 25 mm
d1 24.4 mm
l4 100 mm
h1 77 mm
l3 40 mm
l5 10 mm
W 30 mm
d3 27.5 mm
dL 34 mm
r1s min 0.2 mm
Ball dia. 34.925 mm
Dynamic load capacity 61.6 kN
Static load capacity 61.6 kN

IKO PHS20EC rod ends is available from stock, Maintenance-free type PILLOBALL rod ends With Female Thread.
