IKO PHSB7 rod ends | d:11.112,D:28.58,L:60.33mm
Also known as : PHSB7
- d: 11.112 mm
- d2: 28.58 mm
- Height: 60.33 mm
- Basic dynamic load rating: 11.2 kN
- Basic static load rating: 26.1 kN
IKO PHSB7

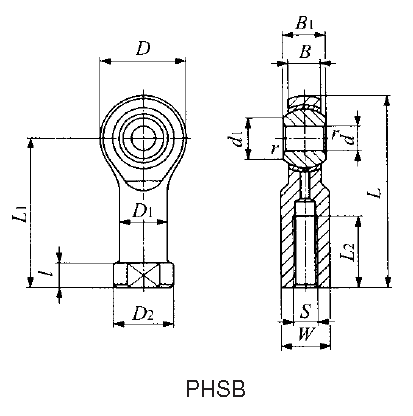

IKO PHSB7 Bearing details
Identification number | PHSB7 |
---|---|
Type | Inch series PILLOBALL Rod ends |
Mass | 82 g |
d | 11.112 mm |
Thread S | -20UNF |
D | 28.58 mm |
B | 11.1 mm |
B1 | 14.27 mm |
d1 | 14.88 mm |
L | 60.33 mm |
l | 6.35 mm |
L1 | 46.02 mm |
L2 | 26.97 mm |
W | 15.88 mm |
D1 | 15.88 mm |
D2 | 19.05 mm |
rs min | 0.5 mm |
Ball dia. | 20.638 mm |
Dynamic load capacity | 11.2 kN |
Static load capacity | 26.1 kN |
IKO PHSB7 rod ends is available from stock, Inch series PILLOBALL rod ends Insert type/With Female Thread.
