INA needle roller and cage assemblies design

Where INA needle roller and cage assemblies are to be used, the housing bore and the shaft raceway must be hardened and ground. The surface hardness of the raceways must be 670 HV + 170 HV, the hardening depth CHD or SHD must be sufficiently large.

Raceway design

Shaft -
diameter
Bore -
tolerance
Shaft tolerance Roughness Roundness Parallelism
Nominal dimension
mm
Bearing clearance
over incl. Small Normal Large max. max. max.
- 80 G6 j5 h5 g6 Ra0,2(Rz1) IT3 IT3
H6 h5 g5 f6
80 120 G6 h5 g5 f6 Ra0,3(Rz1,6)
120 - G6 h5 g5 f6 Ra0,4(Rz2,5)
H6 - f5 e6

Raceway width

The The raceway width must be at least equal to the cage width Bc (Bc is produced with a minus (–) tolerance); values for Bc, see dimension tables. The distance between the axial limit surfaces should therefore be toleranced to H12.

Raceway width and axial running surfaces
Semiconductors
The axial running surfaces for the needle roller and cage assemblies must be precision machined (Ra2 recommended) and resistant to wear.

Axial location

INA needle roller and cage assemblies must be axially located. They are located by means of snap rings or appropriate design of the adjacent construction.

If location is by means of snap rings or retaining rings, a washer must be arranged in front of the ring. It must be ensured that there is sufficient interference between the ring and washer.

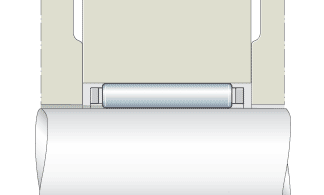

Axial location by adjacent construction
Semiconductors
