Fitting and dismantling of INA yoke type track rollers

If the tolerances are unfavourable, the yoke type track roller should be pressed onto the shaft or stud using a press. The inner ring must be fitted such that the pressing-in force is distributed uniformly on the end face of the inner ring.

The INA bearings should be fitted such that the lubrication holes are positioned in the unloaded zone. For yoke type track rollers PWTR and NNTR, there is no need for defined positioning of the lubrication hole.

Fitting of yoke type track roller using a fitting press
Fitting of yoke type track roller using a fitting press
1, Fitting press

Axial location
Axial location

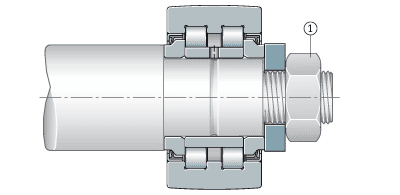

1, Hexagon nut
Yoke type track rollers NUTR, PWTR and NNTR must be axially clamped in place
