INA RAE20-XL-NPP-B bearing | 20x47x31 mm
Also known as : RAE20-XL-NPP-B
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 31 mm
- Basic dynamic load rating: 13.6 kN
- Basic static load rating: 6.6 kN
INA RAE20-XL-NPP-B Bearing
INA RAE20-XL-NPP-B Bearing details
| Number | RAE20-XL-NPP-B | |
|---|---|---|
| Type |
Radial insert ball bearings spherical outer ring, location by eccentric locking collar, P seals on both sides |
|

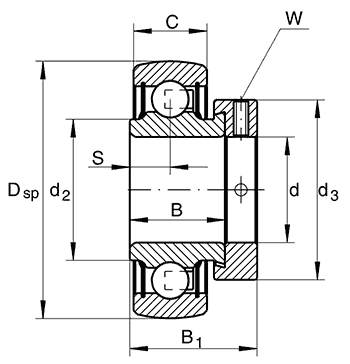

| d | 20mm | |
| DSP | 47mm | |
| B1 | 31mm | |
| B | 21,4mm | |
| C | 14mm | |
| d2 | 26,9mm | |
| d3 max | 33mm | |
| S | 7,5mm | |
| W | 3mm | |
| m | 0,16kg | Mass |
| Cr | 13600N | Basic dynamic load rating, radial |
| C0r | 6600N | Basic static load rating, radial |
| Cur | 335N | Fatigue limit load, radial |
| f0 | 13,1 | Calculation factor |
As INA bearing distributor, Nodes bearings have INA RAE20-XL-NPP-B Insert ball bearings in stock. RAE20-XL-NPP-B, spherical outer ring, location by eccentric locking collar, P seals on both sides.
