INA KRE19-PP Cam follower bearings
Also known as : KRE19-PP, CFE8BUUR
- D: 19 mm
- d1: 11 mm
- B: 32 mm
- Cr: 3.5 kN
- C0r: 4 kN

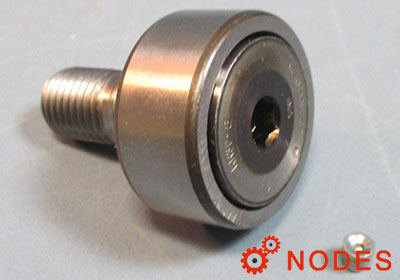

INA KRE19-PP Bearing
INA KRE19-PP Cam Follower Bearing details
model | KRE19-PP |
---|---|
D | 19 mm |
de | 11 mm |
B | 32 mm |
B1 max | 12.2 mm |
B2 | 20 mm |
B3 | mm |
Be | 9 mm, Eccentric collar |
C | 11 mm |
C1 | 0.6 mm |
d1 | 8 mm, Tolerance: h7 |
d2 | 15 mm |
d3 | mm |
e | 0.5 mm, Eccentric collar |
G | M8(x1.25) |
IG | 10 mm |
rmin | 0.15 mm |
W | mm, Nominal dimension for hexagonal socket |
MA | 8 Nm, Nut tightening torque |
Cr w | 3500 N, Effective dynamic load rating as track roller (radial) |
C0r w | 4000 N, Effective static load rating as track roller (radial) |
Cur w | 540 N, Fatigue limit load |
Speed | 11000 1/min, with continuous operation and grease lubrication |
NIPA1 |
Drive fit lubrication nipple Drive fit lubrication nipples are supplied loose. Only these lubrication nipples should be used. |
mass | 32 g |
INA KRE19-PP bearings, Cam follower bearings, with eccentric collar, plastic axial plain washers on both sides
