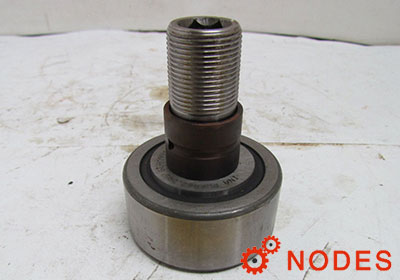

INA KRV47-PP cam followers

INA KRV47-PP Cam follower bearings

Also known as : KRV47-PP, CF20-1VBUUR

• D: 47 mm
• d1: 20 mm
• B: 66 mm
• Cr: 20.3 kN
• C0r: 42 kN

INA KRV47-PP Bearing

model	KRV47-PP
D	47 mm
d1	20 mm, Tolerance: h7
B	66 mm
B1 max	25.6 mm
B2	40.5 mm
B3	9 mm
C	24 mm
C1	0.8 mm
d2	36.5 mm
d3	4 mm
G	M20x1.5
IG	21 mm
rmin	1 mm
W	10 mm, Nominal dimension for hexagonal socket
MA	120 Nm, Nut tightening torque
Cr w	20300 N, Effective dynamic load rating as track roller (radial)
C0r w	42000 N, Effective static load rating as track roller (radial)
Cur w	5900 N, Fatigue limit load
Speed	1300 1/min, with continuous operation and grease lubrication
NIPA2X7,5	Drive fit lubrication nipple Drive fit lubrication nipples are supplied loose. Only these lubrication nipples should be used.
Ap	AP10, Suitable central lubrication adapter for connection to a central lubrication system
mass	390 g

INA KRV47-PP bearings, Cam follower bearings, with axial guidance, full complement needle roller set, plastic axial plain washers on both sides
