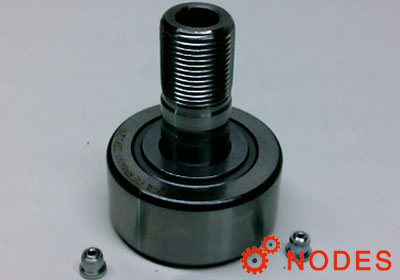

INA ZL5206-DRS Stud type track rollers
Also known as : ZL5206-DRS
- D: 72 mm
- d1: 30 mm
- B: 59 mm
- Cr: 25 kN
- C0r: 18 kN
INA ZL5206-DRS Bearing
INA ZL5206-DRS Cam Follower Bearing details
model | ZL5206-DRS |
---|---|
D | 72 mm |
d1 | 30 mm |
B | 59 mm |
B1 max | 29 mm |
B2 | 30 mm |
B4 | 56.5 mm |
C | 23.8 mm |
C1 | 4.5 mm |
d2 | 37.3 mm |
g | M16 |
lg | 20 mm |
Crowning radius | 500 mm |
rmin | 1 mm |
Cr w | 25000 N, Effective dynamic load rating as track roller (radial) |
C0r w | 18000 N, Effective static load rating as track roller (radial) |
Cur w | 930 N, Fatigue limit load |
Speed | 3500 1/min, Speed (with continuous operation and grease lubrication) |
mass | 0.55 kg |
INA ZL5206-DRS bearings, INA stud type track rollers, ball bearing, double row, lip seal on one side.
