INA RWU25-E-HL Recirculating roller bearing carriage
- Height (mm): 40
- Width carriage (mm): 48
- Length carriage (mm): 107
- Width rail (mm): 23
- ball/roller: roller
- mounting hole width (mm): 35
- mounting hole length (mm): 50
INA RWU25-E-HL
INA RWU25-E-HL details
| Part Number | RWU25-E-HL |
|---|---|
| Brand | INA |
| Catagory | High, narrow, long carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication |
| Main Dimensions & Performance Data | |
| H | 40 mm, height system |
| B | 48 mm, width carriage |
| L | 107 mm, overall length carriage |
| C | 33500 N, dynamic load rating |
| C0 | 82000 N, dynamic load rating |
| M0x | 440 Nm, static moment rating about X axis |
| M0y | 1,200 Nm, static moment rating about Y axis |
| M0z | 1,080 Nm, static moment rating about Z axis |
| Weight | 0.72 kg |

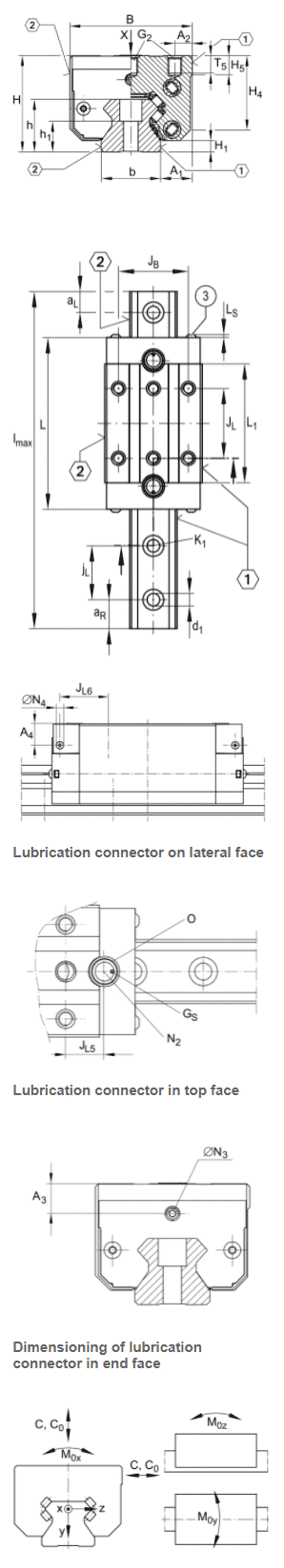

| Mounting dimensions | |
| A1 | 12.5 mm |
| JB | 35 mm |
| b | 23 mm, width rail |
| A2 | 6.5 mm |
| L1 | 82.2 mm |
| LS | 2.2 mm |
| JL | 50 mm |
| JLZ | mm |
| H1 | 6.5 mm |
| H4 | 32.5 mm |
| H5 | 5.25 mm |
| T5 | 7.5 mm |
| G2 | M6, fixing screws below |
| G2 MA | 17 Nm, maximum tightening torque |
| A3 | 11.5 mm, position lubrication connector |
| N3 | M6, lubrication connector |
| t N3 | 6 mm, maximum permissible screw depth for lubrication connectors |
| N2 | 3 mm, max. diameter of lubrication hole in adjacent construction |
| JL5 | 20.3 mm, position lubrication connector |
| GS | M4x4 |
| O | 10x1,5 mm, O-Ring |
INA RWU25-E-HL, High, narrow, long carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication.
- Carriage design: HL
