INA RWU55-E-L Recirculating roller bearing carriage

INA RWU55-E-L Recirculating roller bearing carriage

• Height (mm): 70
• Width carriage (mm): 140
• Length carriage (mm): 210.7
• Width rail (mm): 53
• ball/roller: roller
• mounting hole width (mm): 116
• mounting hole length (mm): 95

Inquire Now

INA RWU55-E-L

Part Number	RWU55-E-L
Brand	INA
Catagory	Long carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication
Main Dimensions & Performance Data
H	70 mm, height system
B	140 mm, width carriage
L	210.7 mm, overall length carriage
C	167000 N, dynamic load rating
C0	415000 N, dynamic load rating
M0x	4,226 Nm, static moment rating about X axis
M0y	12,214 Nm, static moment rating about Y axis
M0z	11,010 Nm, static moment rating about Z axis
Weight	6.752 kg

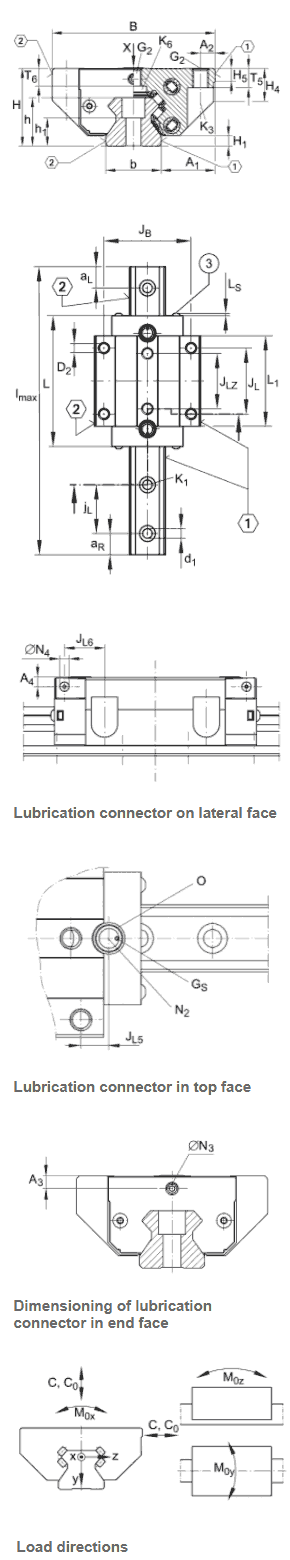

Mounting dimensions
A1	43.5 mm
JB	116 mm
b	53 mm, width rail
A2	12 mm
L1	165 mm
LS	2.75 mm
JL	95 mm
JLZ	70 mm
H1	11 mm
H4	32 mm
H5	12 mm
T5	18 mm
T6	14.8 mm
G2	M14, fixing screws below
G2 MA	140 Nm, maximum tightening torque
K3	M12, fixing screws below
K3 MA	140 Nm, maximum tightening torque
K6	M12, fixing screws below
K6 MA	83 Nm, maximum tightening torque
D2	12.5 mm
A3	8.1 mm, position lubrication connector
N3	M6, lubrication connector
t N3	6 mm, maximum permissible screw depth for lubrication connectors
N4	6, lubrication connector
t N4	6 mm, maximum permissible screw depth for lubrication connectors
N2	6 mm, max. diameter of lubrication hole in adjacent construction
JL5	40.6 mm, position lubrication connector
GS	M4x4
O	10x1,5 mm, O-Ring

INA RWU55-E-L, Long carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication.

• Carriage design: L
