INA RWU55-E-V3-G2 Recirculating roller bearing carriage
- Height (mm): 70
- Width carriage (mm): 140
- Length carriage (mm): 172.7
- Width rail (mm): 53
- ball/roller: roller
- mounting hole width (mm): 116
- mounting hole length (mm): 95
INA RWU55-E-V3-G2
INA RWU55-E-V3-G2 details
Part Number | RWU55-E-V3-G2 |
---|---|
Brand | INA |
Catagory | Standard carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication |
Main Dimensions & Performance Data | |
H | 70 mm, height system |
B | 140 mm, width carriage |
L | 172.7 mm, overall length carriage |
C | 136000 N, dynamic load rating |
C0 | 320000 N, dynamic load rating |
M0x | 3,287 Nm, static moment rating about X axis |
M0y | 7,404 Nm, static moment rating about Y axis |
M0z | 6,667 Nm, static moment rating about Z axis |
Weight | 5.156 kg |

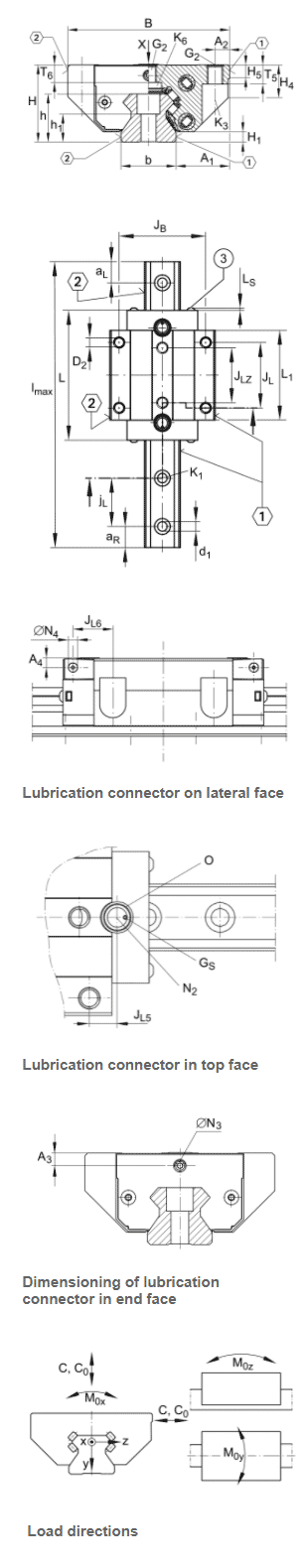

Mounting dimensions | |
A1 | 43.5 mm |
JB | 116 mm |
b | 53 mm, width rail |
A2 | 12 mm |
L1 | 127 mm |
LS | 2.75 mm |
JL | 95 mm |
JLZ | 70 mm |
H1 | 11 mm |
H4 | 32 mm |
H5 | 12 mm |
T5 | 18 mm |
T6 | 14.8 mm |
G2 | M14, fixing screws below |
G2 MA | 140 Nm, maximum tightening torque |
K3 | M12, fixing screws below |
K3 MA | 140 Nm, maximum tightening torque |
K6 | M12, fixing screws below |
K6 MA | 83 Nm, maximum tightening torque |
D2 | 12.5 mm |
A3 | 8.1 mm, position lubrication connector |
N3 | M6, lubrication connector |
t N3 | 6 mm, maximum permissible screw depth for lubrication connectors |
N4 | 6, lubrication connector |
t N4 | 6 mm, maximum permissible screw depth for lubrication connectors |
N2 | 6 mm, max. diameter of lubrication hole in adjacent construction |
JL5 | 21.6 mm, position lubrication connector |
GS | M4x4 |
O | 10x1,5 mm, O-Ring |
INA RWU55-E-V3-G2, Standard carriage with full complement recirculating roller system for linear recirculating roller bearing and guideway assembly, for oil or grease lubrication.
- Carriage design: Standard
- Preload: V3
- Accuracy class: G2
