INA drawn cup needle roller bearings

INA drawn cup needle roller bearings

INA drawn cup needle roller bearings

INA Drawn cup needle roller bearings with open ends and with closed end are needle roller bearings with a very small radial section height. They comprise thin-walled, drawn cup outer rings and needle roller and cage assemblies which together form a complete unit.

These INA bearings allow the design of particularly compact and easy‑to‑fit bearing arrangements with high radial load carrying capacity. In order to support axial forces, they can also be combined with axial needle roller bearings AXW, series AXW

The majority of the bearings are of a single row design and do not have a lubrication hole. Double row designs have a lubrication hole and the suffix ZW.

INA drawn cup needle roller bearings: HK, HN, HK..-RS, HK..-2RS, BK, BK..-RS.

INA

INA SCE47 shell needle bearings, inch sizes

INA SCE47 bearing, inch sizes needle roller bearings, Dimensions: 6.35mm x 11.112mm x 11.112mm, Cr: 4100N, C0r: 3900N, Limiting Speeds:35000 1/min.

Brand: INA
Inside Diameter: 6.35 mm
Outside Diameter: 11.112 mm
Width: 11.112 mm
Basic dynamic load rating: 4.1 kN
Basic static load rating: 4.1 kN

INA

INA SCE34-TN shell needle bearings, inch sizes

INA SCE34-TN bearing, inch sizes needle roller bearings, Dimensions: 4.762mm x 8.731mm x 6.35mm, Cr: 1790N, C0r: 1360N, Limiting Speeds:21000 1/min.

Brand: INA
Inside Diameter: 4.762 mm
Outside Diameter: 8.731 mm
Width: 6.35 mm
Basic dynamic load rating: 1.79 kN
Basic static load rating: 1.79 kN

INA

INA SCE24-TN shell needle bearings, inch sizes

INA SCE24-TN bearing, inch sizes needle roller bearings, Dimensions: 3.175mm x 6.35mm x 6.35mm, Cr: 1070N, C0r: 740N, Limiting Speeds:31500 1/min.

Brand: INA
Inside Diameter: 3.175 mm
Outside Diameter: 6.35 mm
Width: 6.35 mm
Basic dynamic load rating: 1.07 kN
Basic static load rating: 1.07 kN

INA

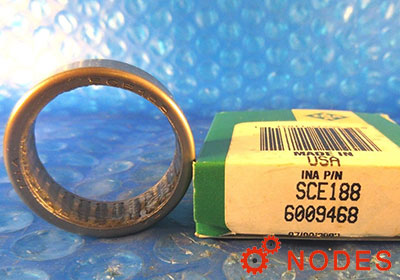

INA SCE188 shell needle bearings, inch sizes

INA SCE188 bearing, inch sizes needle roller bearings, Dimensions: 28.575mm x 34.925mm x 12.7mm, Cr: 12800N, C0r: 20200N, Limiting Speeds:9000 1/min.

Brand: INA
Inside Diameter: 28.575 mm
Outside Diameter: 34.925 mm
Width: 12.7 mm
Basic dynamic load rating: 12.8 kN
Basic static load rating: 12.8 kN

INA

INA HK3518-RS Needle roller bearings

INA HK3518-RS bearing, drawn cup needle roller bearings witn open ends, lip seal on one side, Dimensions: 35mm x 42mm x 18mm, Cr: 18700N, C0r: 33500N, Limiting Speeds:4500 1/min.

Brand: INA
Inside Diameter: 35 mm
Outside Diameter: 42 mm
Width: 18 mm
Basic dynamic load rating: 18.7 kN
Basic static load rating: 18.7 kN

INA

INA HK3016-2RS Needle roller bearings

INA HK3016-2RS bearing, drawn cup needle roller bearings witn open ends, lip seals on both sides, Dimensions: 30mm x 37mm x 16mm, Cr: 12100N, C0r: 18200N, Limiting Speeds:5200 1/min.

Brand: INA
Inside Diameter: 30 mm
Outside Diameter: 37 mm
Width: 16 mm
Basic dynamic load rating: 12.1 kN
Basic static load rating: 12.1 kN

INA

INA HK1216-2RS Needle roller bearings

INA HK1216-2RS bearing, drawn cup needle roller bearings witn open ends, lip seals on both sides, Dimensions: 12mm x 18mm x 16mm, Cr: 6500N, C0r: 7300N, Limiting Speeds:12000 1/min.

Brand: INA
Inside Diameter: 12 mm
Outside Diameter: 18 mm
Width: 16 mm
Basic dynamic load rating: 6.5 kN
Basic static load rating: 6.5 kN

INA

INA HK2520-2RS Needle roller bearings

INA HK2520-2RS bearing, drawn cup needle roller bearings witn open ends, lip seals on both sides, Dimensions: 25mm x 32mm x 20mm, Cr: 15600N, C0r: 24000N, Limiting Speeds:6100 1/min.

Brand: INA
Inside Diameter: 25 mm
Outside Diameter: 32 mm
Width: 20 mm
Basic dynamic load rating: 15.6 kN
Basic static load rating: 15.6 kN

INA

INA HK2516-2RS Needle roller bearings

INA HK2516-2RS bearing, drawn cup needle roller bearings witn open ends, lip seals on both sides, Dimensions: 25mm x 32mm x 16mm, Cr: 11000N, C0r: 15200N, Limiting Speeds:6100 1/min.

Brand: INA
Inside Diameter: 25 mm
Outside Diameter: 32 mm
Width: 16 mm
Basic dynamic load rating: 11 kN
Basic static load rating: 11 kN

INA

INA HK1816-2RS Needle roller bearings

INA HK1816-2RS bearing, drawn cup needle roller bearings witn open ends, lip seals on both sides, Dimensions: 18mm x 24mm x 16mm, Cr: 8100N, C0r: 10900N, Limiting Speeds:8400 1/min.

Brand: INA
Inside Diameter: 18 mm
Outside Diameter: 24 mm
Width: 16 mm
Basic dynamic load rating: 8.1 kN
Basic static load rating: 8.1 kN

INA

INA HK1616-2RS Needle roller bearings

INA HK1616-2RS bearing, drawn cup needle roller bearings witn open ends, lip seals on both sides, Dimensions: 16mm x 22mm x 16mm, Cr: 7600N, C0r: 9700N, Limiting Speeds:9300 1/min.

Brand: INA
Inside Diameter: 16 mm
Outside Diameter: 22 mm
Width: 16 mm
Basic dynamic load rating: 7.6 kN
Basic static load rating: 7.6 kN

INA

INA HK1014-2RS Needle roller bearings

INA HK1014-2RS bearing, drawn cup needle roller bearings witn open ends, lip seals on both sides, Dimensions: 10mm x 14mm x 14mm, Cr: 4400N, C0r: 5100N, Limiting Speeds:14600 1/min.

Brand: INA
Inside Diameter: 10 mm
Outside Diameter: 14 mm
Width: 14 mm
Basic dynamic load rating: 4.4 kN
Basic static load rating: 4.4 kN

INA

INA HK0812-2RS Needle roller bearings

INA HK0812-2RS bearing, drawn cup needle roller bearings witn open ends, lip seals on both sides, Dimensions: 8mm x 12mm x 12mm, Cr: 2750N, C0r: 2600N, Limiting Speeds:17700 1/min.

Brand: INA
Inside Diameter: 8 mm
Outside Diameter: 12 mm
Width: 12 mm
Basic dynamic load rating: 2.75 kN
Basic static load rating: 2.75 kN

INA

INA HK2816 Needle roller bearings

INA HK2816 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 28mm x 35mm x 16mm, Cr: 16400N, C0r: 26500N, Limiting Speeds:9200 1/min.

Brand: INA
Inside Diameter: 28 mm
Outside Diameter: 35 mm
Width: 16 mm
Basic dynamic load rating: 16.4 kN
Basic static load rating: 16.4 kN

INA

INA HK2220 Needle roller bearings

INA HK2220 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 22mm x 28mm x 20mm, Cr: 16500N, C0r: 29000N, Limiting Speeds:11700 1/min.

Brand: INA
Inside Diameter: 22 mm
Outside Diameter: 28 mm
Width: 20 mm
Basic dynamic load rating: 16.5 kN
Basic static load rating: 16.5 kN

INA

INA HK2212 Needle roller bearings

INA HK2212 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 22mm x 28mm x 12mm, Cr: 9100N, C0r: 13400N, Limiting Speeds:11700 1/min.

Brand: INA
Inside Diameter: 22 mm
Outside Diameter: 28 mm
Width: 12 mm
Basic dynamic load rating: 9.1 kN
Basic static load rating: 9.1 kN

INA

INA HK1622-ZW Needle roller bearings

INA HK1622-ZW bearing, drawn cup needle roller bearings witn open ends, Dimensions: 16mm x 22mm x 22mm, Cr: 13100N, C0r: 19400N, Limiting Speeds:15600 1/min.

Brand: INA
Inside Diameter: 16 mm
Outside Diameter: 22 mm
Width: 22 mm
Basic dynamic load rating: 13.1 kN
Basic static load rating: 13.1 kN

INA

INA HK1616 Needle roller bearings

INA HK1616 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 16mm x 22mm x 16mm, Cr: 10900N, C0r: 15300N, Limiting Speeds:15600 1/min.

Brand: INA
Inside Diameter: 16 mm
Outside Diameter: 22 mm
Width: 16 mm
Basic dynamic load rating: 10.9 kN
Basic static load rating: 10.9 kN

INA

INA HK1612 Needle roller bearings

INA HK1612 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 16mm x 22mm x 12mm, Cr: 7600N, C0r: 9700N, Limiting Speeds:15600 1/min.

Brand: INA
Inside Diameter: 16 mm
Outside Diameter: 22 mm
Width: 12 mm
Basic dynamic load rating: 7.6 kN
Basic static load rating: 7.6 kN

INA

INA HK1522-ZW Needle roller bearings

INA HK1522-ZW bearing, drawn cup needle roller bearings witn open ends, Dimensions: 15mm x 21mm x 22mm, Cr: 13400N, C0r: 19500N, Limiting Speeds:16500 1/min.

Brand: INA
Inside Diameter: 15 mm
Outside Diameter: 21 mm
Width: 22 mm
Basic dynamic load rating: 13.4 kN
Basic static load rating: 13.4 kN

INA

INA HK1412 Needle roller bearings

INA HK1412 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 14mm x 20mm x 12mm, Cr: 7100N, C0r: 8500N, Limiting Speeds:17500 1/min.

Brand: INA
Inside Diameter: 14 mm
Outside Diameter: 20 mm
Width: 12 mm
Basic dynamic load rating: 7.1 kN
Basic static load rating: 7.1 kN

INA

INA HK1015 Needle roller bearings

INA HK1015 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 10mm x 14mm x 15mm, Cr: 6800N, C0r: 8800N, Limiting Speeds:24300 1/min.

Brand: INA
Inside Diameter: 10 mm
Outside Diameter: 14 mm
Width: 15 mm
Basic dynamic load rating: 6.8 kN
Basic static load rating: 6.8 kN

INA

INA HK1012 Needle roller bearings

INA HK1012 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 10mm x 14mm x 12mm, Cr: 5500N, C0r: 6800N, Limiting Speeds:24300 1/min.

Brand: INA
Inside Diameter: 10 mm
Outside Diameter: 14 mm
Width: 12 mm
Basic dynamic load rating: 5.5 kN
Basic static load rating: 5.5 kN

INA

INA HK1010 Needle roller bearings

INA HK1010 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 10mm x 14mm x 10mm, Cr: 4400N, C0r: 5100N, Limiting Speeds:24300 1/min.

Brand: INA
Inside Diameter: 10 mm
Outside Diameter: 14 mm
Width: 10 mm
Basic dynamic load rating: 4.4 kN
Basic static load rating: 4.4 kN

INA

INA HK0810 Needle roller bearings

INA HK0810 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 8mm x 12mm x 10mm, Cr: 3800N, C0r: 3950N, Limiting Speeds:29500 1/min.

Brand: INA
Inside Diameter: 8 mm
Outside Diameter: 12 mm
Width: 10 mm
Basic dynamic load rating: 3.8 kN
Basic static load rating: 3.8 kN

INA

INA HK0609 Needle roller bearings

INA HK0609 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 6mm x 10mm x 9mm, Cr: 2850N, C0r: 2600N, Limiting Speeds:36500 1/min.

Brand: INA
Inside Diameter: 6 mm
Outside Diameter: 10 mm
Width: 9 mm
Basic dynamic load rating: 2.85 kN
Basic static load rating: 2.85 kN

INA

INA HK0608 Needle roller bearings

INA HK0608 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 6mm x 10mm x 8mm, Cr: 2030N, C0r: 1650N, Limiting Speeds:36500 1/min.

Brand: INA
Inside Diameter: 6 mm
Outside Diameter: 10 mm
Width: 8 mm
Basic dynamic load rating: 2.03 kN
Basic static load rating: 2.03 kN

INA

INA HK0509 Needle roller bearings

INA HK0509 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 5mm x 9mm x 9mm, Cr: 2400N, C0r: 1990N, Limiting Speeds:39000 1/min.

Brand: INA
Inside Diameter: 5 mm
Outside Diameter: 9 mm
Width: 9 mm
Basic dynamic load rating: 2.4 kN
Basic static load rating: 2.4 kN

INA

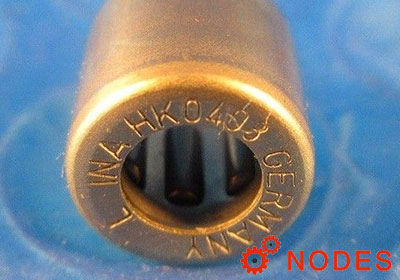

INA HK0408 Needle roller bearings

INA HK0408 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 4mm x 8mm x 8mm, Cr: 1780N, C0r: 1310N, Limiting Speeds:42500 1/min.

Brand: INA
Inside Diameter: 4 mm
Outside Diameter: 8 mm
Width: 8 mm
Basic dynamic load rating: 1.78 kN
Basic static load rating: 1.78 kN

INA

INA HK0306-TV Needle roller bearings

INA HK0306-TV bearing, drawn cup needle roller bearings witn open ends, Dimensions: 3mm x 6.5mm x 6mm, Cr: 1230N, C0r: 840N, Limiting Speeds:48000 1/min.

Brand: INA
Inside Diameter: 3 mm
Outside Diameter: 6.5 mm
Width: 6 mm
Basic dynamic load rating: 1.23 kN
Basic static load rating: 1.23 kN

INA

INA HK4020 Needle roller bearings

INA HK4020 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 40mm x 47mm x 20mm, Cr: 25500N, C0r: 52000N, Limiting Speeds:6600 1/min.

Brand: INA
Inside Diameter: 40 mm
Outside Diameter: 47 mm
Width: 20 mm
Basic dynamic load rating: 25.5 kN
Basic static load rating: 25.5 kN

INA

INA HK3520 Needle roller bearings

INA HK3520 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 35mm x 42mm x 20mm, Cr: 23800N, C0r: 46000N, Limiting Speeds:7500 1/min.

Brand: INA
Inside Diameter: 35 mm
Outside Diameter: 42 mm
Width: 20 mm
Basic dynamic load rating: 23.8 kN
Basic static load rating: 23.8 kN

INA

INA HK3516 Needle roller bearings

INA HK3516 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 35mm x 42mm x 16mm, Cr: 18700N, C0r: 33500N, Limiting Speeds:7500 1/min.

Brand: INA
Inside Diameter: 35 mm
Outside Diameter: 42 mm
Width: 16 mm
Basic dynamic load rating: 18.7 kN
Basic static load rating: 18.7 kN

INA

INA HK3016 Needle roller bearings

INA HK3016 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 30mm x 37mm x 16mm, Cr: 17200N, C0r: 29000N, Limiting Speeds:8600 1/min.

Brand: INA
Inside Diameter: 30 mm
Outside Diameter: 37 mm
Width: 16 mm
Basic dynamic load rating: 17.2 kN
Basic static load rating: 17.2 kN

INA

INA HK3012 Needle roller bearings

INA HK3012 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 30mm x 37mm x 12mm, Cr: 12100N, C0r: 18200N, Limiting Speeds:8600 1/min.

Brand: INA
Inside Diameter: 30 mm
Outside Diameter: 37 mm
Width: 12 mm
Basic dynamic load rating: 12.1 kN
Basic static load rating: 12.1 kN

INA

INA HK2820 Needle roller bearings

INA HK2820 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 28mm x 35mm x 20mm, Cr: 20900N, C0r: 36000N, Limiting Speeds:9200 1/min.

Brand: INA
Inside Diameter: 28 mm
Outside Diameter: 35 mm
Width: 20 mm
Basic dynamic load rating: 20.9 kN
Basic static load rating: 20.9 kN

INA

INA HK2526 Needle roller bearings

INA HK2526 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 25mm x 32mm x 26mm, Cr: 25500N, C0r: 45000N, Limiting Speeds:10200 1/min.

Brand: INA
Inside Diameter: 25 mm
Outside Diameter: 32 mm
Width: 26 mm
Basic dynamic load rating: 25.5 kN
Basic static load rating: 25.5 kN

INA

INA HK2516 Needle roller bearings

INA HK2516 bearing, drawn cup needle roller bearings witn open ends, Dimensions: 25mm x 32mm x 16mm, Cr: 15600N, C0r: 24000N, Limiting Speeds:10200 1/min.

Brand: INA
Inside Diameter: 25 mm
Outside Diameter: 32 mm
Width: 16 mm
Basic dynamic load rating: 15.6 kN
Basic static load rating: 15.6 kN
