INA HK0912 Needle roller bearings
Also known as : HK0912
- Inside Diameter: 9 mm
- Outside Diameter: 13 mm
- Width: 12 mm
- Basic dynamic load rating: 5.3 kN
- Basic static load rating: 6.3 kN
INA HK0912 Bearing
INA HK0912 Bearing details
| model | HK0912 |
|---|---|
| Fw | 9 mm |
| D | 13 mm |
| C | 12 mm |
| rmin | 0.4 mm |
| Cr | 5300 N |
| C0r | 6300 N |
| Cur | 860 N Fatigue limit load, radial |
| Limiting speed | 26500 1/min |
| Reference speed | 20200 1/min |
| IR6X9X12-XL Suitable inner ring | |
| GR9X13X3 Suitable sealing ring | |
| G9X13X3 Suitable sealing ring | |
| mass | 4.6 g |
INA HK0912 needle bearings, drawn cup needle roller bearing with open ends, to DIN 618-1/ISO 3245.
INA HK0912 bearing cross reference
INA HK0908 bearing
9mm x 13mm x 8mm
INA HK0910 bearing
9mm x 13mm x 10mm
INA IR9X12X12-XL bearing
9mm x 12mm x 12mm
INA IR9X12X16-XL bearing
9mm x 12mm x 16mm
INA NAO9X22X12-TV-XL bearing
9mm x 22mm x 12mm
INA NK9/12-TV-XL bearing
9mm x 16mm x 12mm
INA NK9/16-TV-XL bearing
9mm x 16mm x 16mm

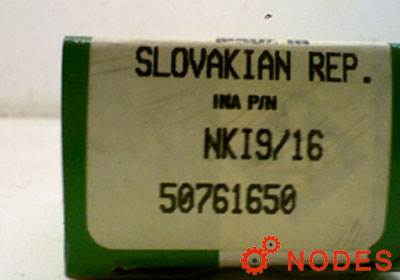

INA NKI9/12-XL bearing
9mm x 19mm x 12mm
INA NKI9/16-XL bearing
9mm x 19mm x 16mm
INA K9X12X10-TV bearing
9mm x 12mm x 10mm
