INA NA49/28-XL Bearing

INA NA49/28-XL needle bearings

Also known as : NA49/28-XL

  • Inside Diameter: 28 mm
  • Outside Diameter: 45 mm
  • Width: 17 mm
  • Basic dynamic load rating: 27.5 kN
  • Basic static load rating: 33.5 kN

Inquire Now


INA NA49/28-XL Bearing

INA NA49/28-XL Bearing details

d 28 mm
D 45 mm
B 17 mm
F 32 mm
rmin 0,3 mm
s 0,8 mm  Axial displacement
m 97,7 g  Mass
Cr 27500 N  Basic dynamic load rating, radial
C0r 33500 N  Basic static load rating, radial
Cur 6100 N  Fatigue limit load, radial
nG 13600 1/min  Limiting speed
nB 7400 1/min  Reference speed

As INA bearing distributor, Nodes bearings have INA NA49/28-XL needle bearings in stock.

INA NA49/28-XL bearing cross reference

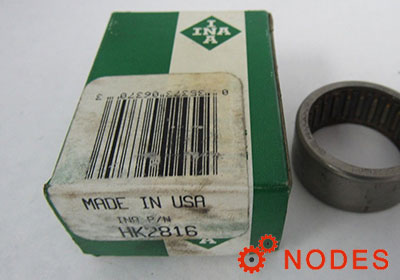

INA HK2816 bearing
28mm x 35mm x 16mm

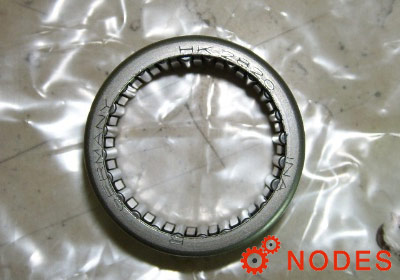

INA HK2820 bearing
28mm x 35mm x 20mm
INA HK2820-2RS bearing
28mm x 35mm x 20mm
INA HK2818-RS bearing
28mm x 35mm x 18mm
INA HN2820 bearing
28mm x 35mm x 20mm
IKO NA49/28 bearing
28mm * 45mm * 17mm
IKO NA49/28UU bearing
28mm * 45mm * 17mm
INA IR28X32X17-XL bearing
28mm x 32mm x 17mm
INA IR28X32X20-XL bearing
28mm x 32mm x 20mm
INA IR28X32X30-XL bearing
28mm x 32mm x 30mm
INA RPNA28/44-XL bearing
28mm x 44mm x 20mm
INA NK28/20-D-XL bearing
28mm x 37mm x 20mm
